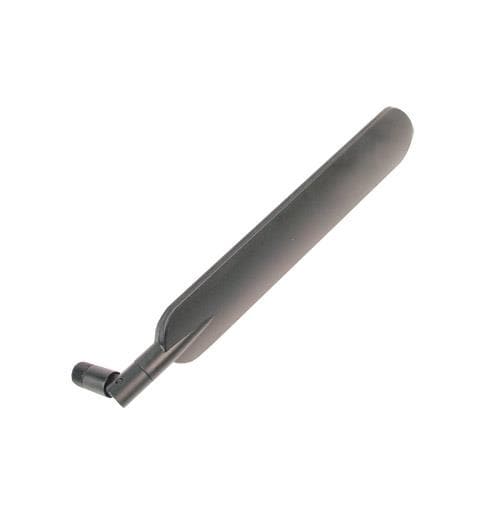

Siretta DELTA40/X/SMAM/S/S/32 Passive Antenna HELIUM, WEIGHTLESS, LORA, 5G/4G 161MM DIRECT CONNECT ANTENNA SMA MALE CONNECTOR

Gain: 2 dBi

VSWR: 2.5:1

Style: Straight Right Angle

Width: 30.6 mm

Length: 161 mm

Diameter: 13 mm

Frequency: 790 MHz to 960 MHz, 1.71 GHz to 2.17 GHz, 2.5 GHz to 2.7 GHz

Impedance: 50 Ohms

Application: Cellular Applications

Unit Weight: 30 g

Polarization: Vertical

REACH - SVHC: Details

Mounting Style: Panel Mount

Frequency Range: 790 MHz to 2.7 GHz

Number of Bands: 3 Band

Center Frequency: 800 MHz, 900 MHz, 1.8 GHz, 1.9 GHz, 2.6 GHz

Mechanical Style: Whip

Maximum Frequency: 2.7 GHz

Minimum Frequency: 790 MHz

Termination Style: Connector

Protocol - Sub GHz: ISM, RFID

Antenna Connector Type: SMA Male

Maximum Operating Temperature: + 65 C

Minimum Operating Temperature: - 20 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS
