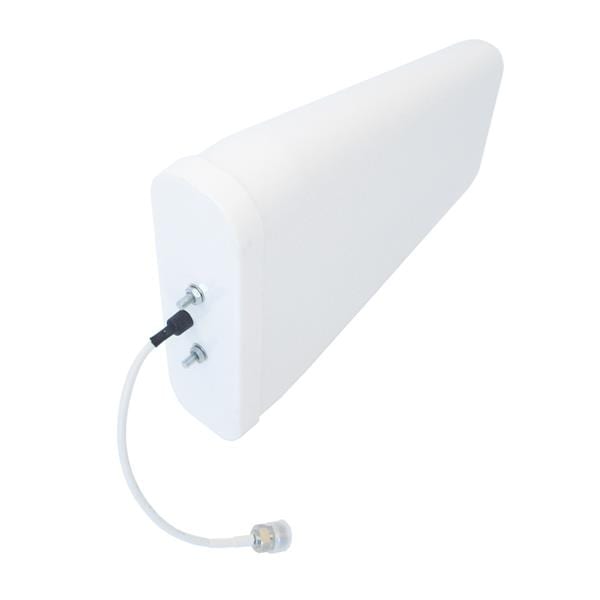

Siretta OSCAR18/X/NF/S/S/22 Passive Antenna PVC YAGI ANTENNA WITH 800-2500MHZ OPERATING FREQUENCY AND N-FEMALE CONNECTOR

Gain: 10 dBi

Style: Directional

Width: 65 mm

Height: 210 mm

Length: 294 mm

Frequency: 800 MHz to 2.5 GHz

Impedance: 50 Ohms

Application: Cellular Applications, Wireless Applications

Unit Weight: 13.608 g

Polarization: Vertical

Power Rating: 50 W

REACH - SVHC: Details

Mounting Style: Bracket Mount

Frequency Range: 800 MHz to 2.5 GHz

Number of Bands: 4 Band

Center Frequency: 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MH, 2400 MHz

Mechanical Style: Log Periodic

Maximum Frequency: 2.5 GHz

Minimum Frequency: 800 MHz

Termination Style: Connector

Protocol - Sub GHz: ISM

Antenna Connector Type: N Female

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN

Protocol - Cellular, NBIoT, LTE: 2G/3G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, GRPS, PCS
