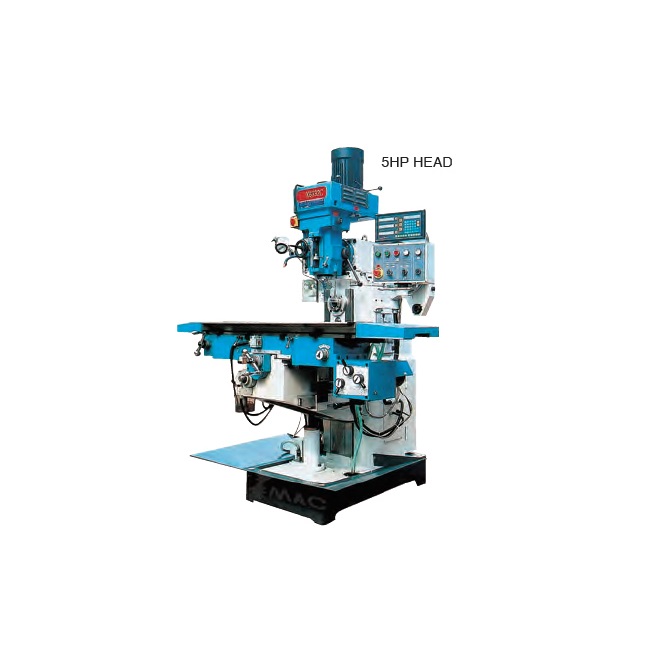

Spindle taper: ISO40
Distance from vertical spindle nose to table: 200-600mm
Distance from Horizontal spindle nose to table: 0-350mm
Range of spindle speed: 16step 66-4540rpm(vertical)
12step 60-1350rpm(horizontal)
Vertical quill travel: 150mm
Table size: 1250 x 320mm
Table travel
Longitudinal: 800mm
Cross: 300mm
Vertical: 300mm
Distance from spindle axis to arm: 190mm
Range of longitudinal, cross travel: (8step) 15-370mm/min (rapid 540mm/min)
Z-speed of table: 560mm/min
T-slot (number-width-distance): 3-14-70
Main motor: 3.7Kw(vertical)
2.2Kw(horizontal)
Motor for rapid device of table (X, Y): 750W
Motor for rapid device of table (Z): 1100W -
Overall dimension: 1820 x 1520 x 2270mm
N.W./G.W.: 1770/1900kg
