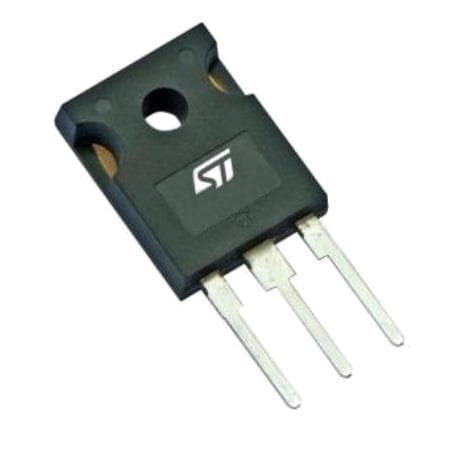

STMicroelectronics SCT10N120AG SiC MOSFETS Automotive-grade Silicon carbide Power MOSFET 1200 V, 12 A, 520 mOhm (typ TJ = 1
Manufacturer: STMicroelectronics Model: SCT10N120AG - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Technology: SiC
Unit Weight: 4.500 g
Channel Mode: Enhancement
Qualification: AEC-Q101
Mounting Style: Through Hole
Qg - Gate Charge: 22 nC
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Pd - Power Dissipation: 150 W
Vgs - Gate-Source Voltage: - 10 V, + 25 V
Id - Continuous Drain Current: 12 A
Maximum Operating Temperature: + 200 C
Minimum Operating Temperature: - 55 C
Rds On - Drain-Source Resistance: 500 mOhms
Vds - Drain-Source Breakdown Voltage: 1.2 kV
Vgs th - Gate-Source Threshold Voltage: 3.5 V
