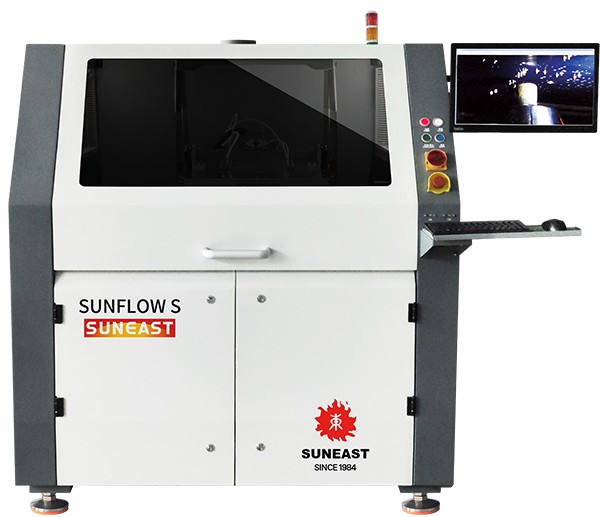

Suneast SUNFLOW S Independent Selective Soldering (510x450x60mm)

- General technical data:

Overall dimension(mm) (Not include the keyboard, indicator light and monitor): 1435(L)*1800(W)*1670(H)

Equipment Weight(kg): Approx.1050

Max PCB size(mm):510(L)x450(W)

Min PCB size(mm):120(L)x50(W)

PCB Top Side Clearance (mm): 120

PCB Bottom Side Clearance (mm): 60

PCB process edge (mm): ≥3

Conveyor Height From Floor (mm): 900±20

PCB Conveying Speed (mm/s): 0.2-10

Max PCB Weight (kg): ≤5

PCB Thickness With Jig (mm): 1-6

Conveyor Width Adjustment Range (mm): 50-450

Conveyor Width Adjustment Mode: Electric

PCB Conveying Direction: Left to right

Air Input Pressure (Mpa): 0.6

Nitrogen Supply: Offered by customer

Nitrogen Input Pressure (Mpa): 0.6

Nitrogen Consumption (m³/h): 1.5

Required Purity of Nitrogen (%): ≥99.999

Supply Voltage (VAC): 380

Voltage Tolerance Range(%): 6-10

Frequency (HZ): 50/60

Max Power Consumption (kw): <11

Max Current (A): <20

Ambient Temperature (℃): 10-35

Machine Noise Leve (dB): <65

Communication Interface: SMEMA

Soldering System

Max.Soldering distance of Xaxis(mm): 510

Max.Soldering distance of Y axis(mm): 450

Max.Soldering distance of Z axis(mm): 60

Nozzle outer diameter(mm): 5、6、8、9、10、12、14

Nozzle inner diameter (mm): 2.4、3、4、5、6、8、10

Max soldering wave height(mm): 5

Solder pot capacity (kg)

Approx.13kg(Sn63Pb)/solder pot

Approx.12kg(lead-free)/solder pot

Max soldering temperature(℃): 330

Soldering heating power (kw): 1.15

Preheating System

Preheat temperature range(℃): <200

Heating power (kw): 5

Heating mode: Hot air
