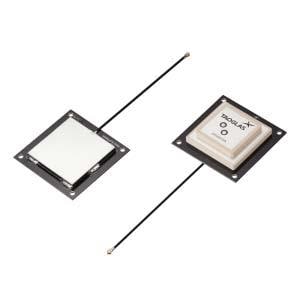

Taoglas AHP24510.07.0100C GNSS Antenna L1/L2 L-BAND ANT

Gain: 2.46 dBi, 2.86 dBi, 3.05 dBi, 4.33 dBi, 4.48 dBi, 4.5 dBi, 29.4 dB

VSWR: <2

Width: 60 mm

Height: 15.15 mm

Length: 60 mm

Impedance: 50 Ohms

Cable Type: 1.37 mm Coax

Application: Autonomous Vehicles, Precision Agriculture, Robotics, Transportation, Wearables

Cable Length: 100 mm

Polarization: RHCP

Mounting Style: Adhesive Mount

Electrical Type: Patch

Number of Bands: 6 Band

Maximum Frequency: 1.61 GHz

Minimum Frequency: 1.217 GHz

Termination Style: Connector

Antenna Connector Type: IPEX MHFI (U.FL)

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
