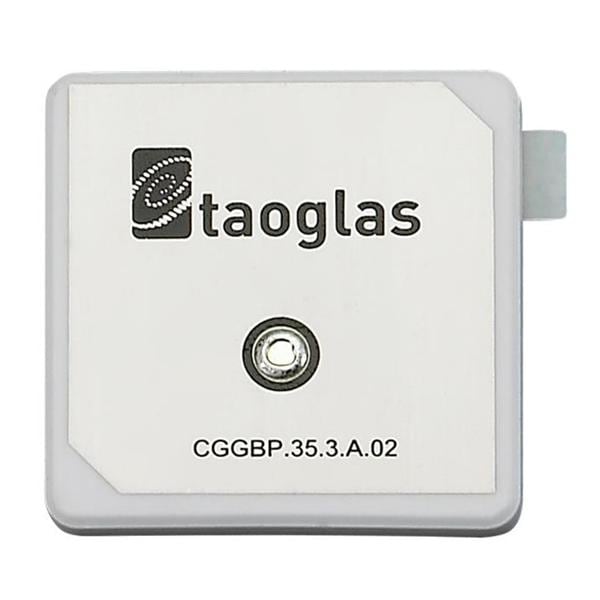

Taoglas CGGBP.35.3.A.02 Passive Antenna CGGBP.35.3.A.02 35*35*3mm GPS/GLONASS/Galileo/BeiDou Patch Antenna

Gain: 4 dBi, 3 dBi, 4.5 dBi

VSWR: 2.5:1, 1.8:1

Style: Ceramic

Width: 35 mm

Height: 3 mm

Length: 35 mm

Bandwidth: 34 MHz

Impedance: 50 Ohms

Application: Satellite Applications

Unit Weight: 18 g

Mounting Style: PCB Mount

Electrical Type: Embedded

Number of Bands: 3 Band

Center Frequency: 1.561 GHz, 1.575 GHz, 1.602 GHz

Mechanical Style: Patch

Ground Plane Size: 70 mm x 70 mm

Maximum Frequency: 1.607 GHz

Minimum Frequency: 1.559052 GHz

Termination Style: Pin

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
