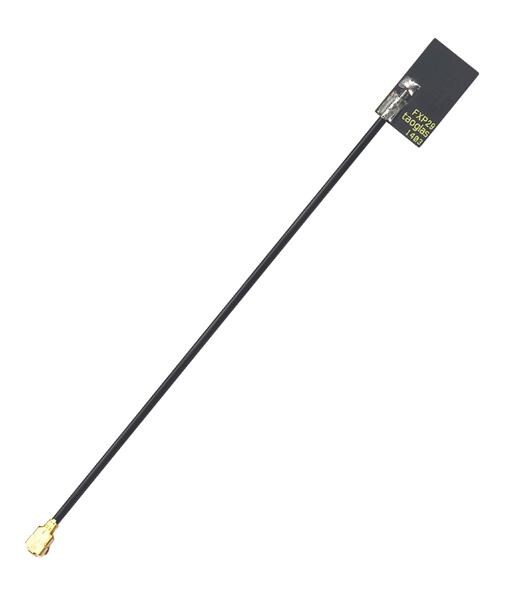

Taoglas FXP29.07.0070A Passive Antenna FXP29 3G 2100MHz Flexible Antenna, 70mm oe1.13mm, I-PEX MHFIU.FL

Gain: 1.5 dBi

Style: I-Bar Flex

Width: 8.4 mm

Height: 0.24 mm

Length: 12.7 mm

Impedance: 50 Ohms

Cable Type: 70 mm RF1.13

Application: M2M Application

Unit Weight: 1 g

Cable Length: 70 mm

For Use With: 3G UMTS/HSPA+ Flexible PCB Antenna

Polarization: Linear

Power Rating: 5 W

Mounting Style: Adhesive Mount

Electrical Type: Monopole

Number of Bands: 1 Band

Center Frequency: 2.1 GHz

Mechanical Style: PCB Trace

Maximum Frequency: 2.17 GHz

Minimum Frequency: 1.92 GHz

Termination Style: Connector

Antenna Connector Type: IPEX MHF1

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 3G, Cellular (NBIoT, LTE), GSM, UMTS, HSPA
