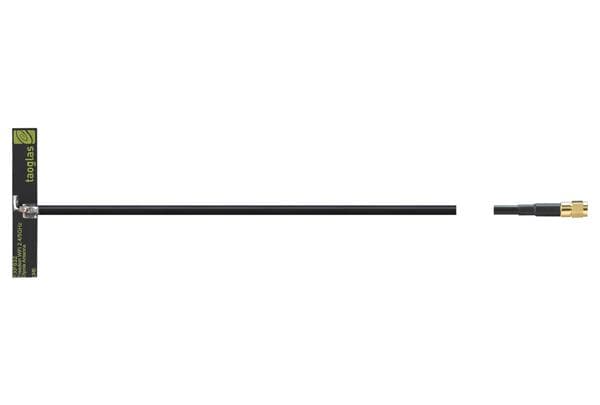

Taoglas FXP832.03.0458D Passive Antenna Freedom FXP832 2.4/4.9-6.0GHz Flex PCB Antenna, 458mm RG-174

Gain: 3.66 dBi, 5.33 dBi

Style: T-Bar Flex

Width: 7 mm

Height: 0.1 mm

Length: 42 mm

Impedance: 50 Ohms

Cable Type: 458 mm RG174

Application: Automotive, Remote Monitoring, Security

Unit Weight: 7.500 g

Cable Length: 458 mm

Polarization: Linear

Power Rating: 2 W

Mounting Style: Adhesive Mount

Electrical Type: Dipole

Number of Bands: 2 Band

Center Frequency: 2.45 GHz, 5.5 GHz

Mechanical Style: PCB Trace

Maximum Frequency: 6 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM, RFID

Antenna Connector Type: RP-SMA Male

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN, DSRC

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
