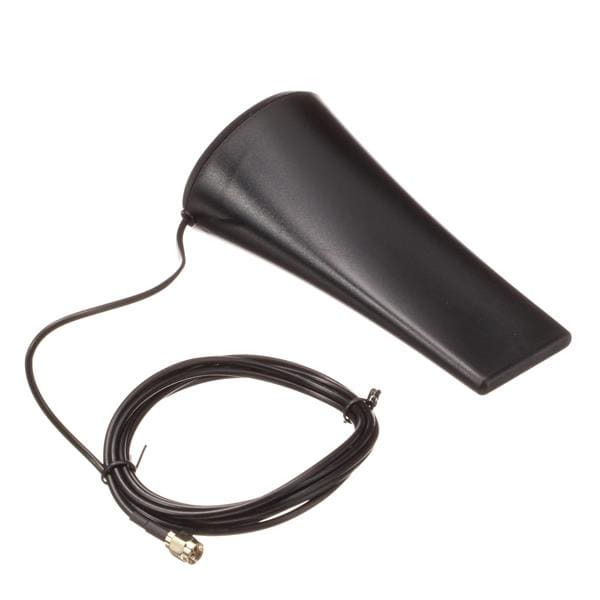

Taoglas GA.130.201111 Passive Antenna GA.130.201111 Shanghai Magnetic Mount 698-2700MHz LTE Antenna

Gain: 1.13 dBi, 0.8 dBi, 0.69 dBi, 0.37 dBi, 1.15 dBi, 1.32 dBi, 3.07 dBi

Style: Sharkfin

Width: 72 mm

Length: 143 mm

Diameter: 53 mm

IP Rating: IP65

Impedance: 50 Ohms

Cable Type: 2 M RG174

Application: Cellular Application

Unit Weight: 145 g

Cable Length: 2 m

Polarization: Linear

Power Rating: 10 W

REACH - SVHC: Details

Mounting Style: Magnetic Mount

Electrical Type: Dipole

Number of Bands: 7 Band

Center Frequency: 700 MHz, 750 MHz, 850 MHz, 900 MHz, 1474 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2500 MHz

Mechanical Style: Module

Ground Plane Size: 50 cm x 50 cm

Maximum Frequency: 2.7 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS
