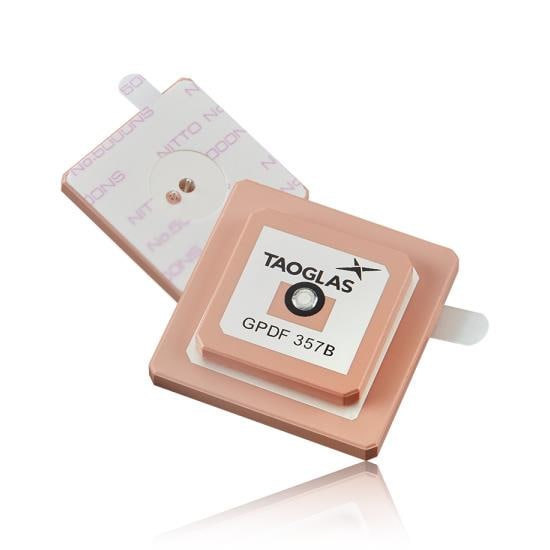

Taoglas GPDF357B Passive Antenna GPS L1/L2 Dual Feed Double Stacked Patch (Tuned for 35x35 GP)

Gain: - 3 dBi, - 5.5 dBi

Style: Stacked

Width: 35 mm

Height: 7 mm

Length: 35 mm

Impedance: 50 Ohms

Application: High Accuracy Positioning, Navigation Systems, UAVs, Robotics, Autonomous Vehicles, Transportation, Telematics, Precision Agriculture, RTK Systems

Polarization: RHCP

Mounting Style: Adhesive Mount

Number of Bands: 2 Band

Center Frequency: 1.2276 GHz, 1.57542 GHz

Mechanical Style: Patch

Ground Plane Size: 35 mm x 35 mm

Maximum Frequency: 1.57542 GHz

Minimum Frequency: 1.2276 GHz

Termination Style: Pin

Protocol - GPS, GLONASS: Galileo, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
