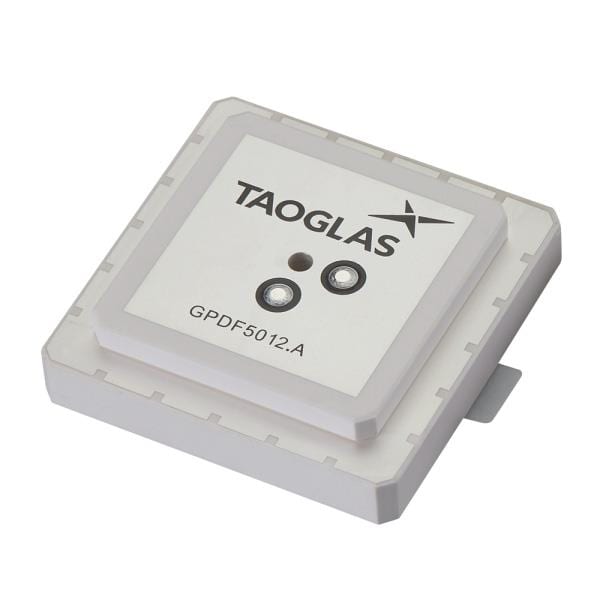

Taoglas GPDF5012.A Passive Antenna MULTIBAND GNSS PATCH

Gain: 0.9, 0.92, 2.96, 4.32, 4.44

VSWR: 1.5:1, 1.5:1, 1.5:1, 1.5:1, 1.5:1

Style: Stacked

Width: 50 mm

Height: 12 mm

Length: 50 mm

Impedance: 50 Ohms

Application: Autonomous Vehicles, Precision Agriculture, Robotics, Telematics

Mounting Style: Adhesive Mount

Number of Bands: 5 Band

Center Frequency: 1.2276 GHz, 1.561 GHz, 1.57542 GHz

Mechanical Style: Patch

Maximum Frequency: 1.602 GHz

Minimum Frequency: 1.17645 GHz

Termination Style: Pin

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GPS, IRNSS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
