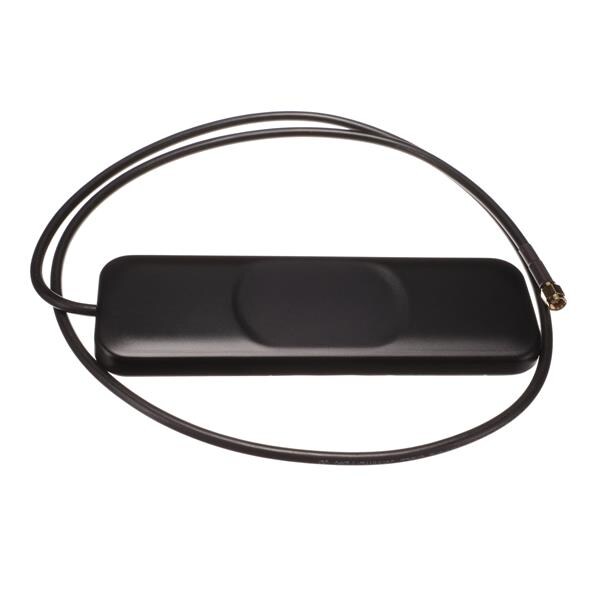

Taoglas GSA.8842.A.105111 Passive Antenna GSA.8842.A.105111 Wideband 5G/4G I-Bar Adhesive Antenna

Gain: 2.33 dBi, 2.55 dBi, - 0.54 dBi, 3.25 dBi, 3.25 dBi, 3.8 dBi, 3.8 dBi, 3.47 dBi

VSWR: 3

Style: I-Bar

Width: 59.2 mm

Height: 13.6 mm

Length: 176.5 mm

IP Rating: IP65

Impedance: 50 Ohms

Cable Type: CFD-200

Application: High Speed Video, Real Time Streaming, High Capacity MIMO Networks on Public Transportation

Cable Length: 1 m

Polarization: Linear

Power Rating: 5 W

REACH - SVHC: Details

Mounting Style: Adhesive Mount

Electrical Type: Dipole

Number of Bands: 8 Band

Center Frequency: 657 MHz, 700 MHz, 850 MHz, 900 MHz, 1575 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2450 MHz, 2600 MHz, 5400 MHz

Mechanical Style: Module

Maximum Frequency: 6 GHz

Minimum Frequency: 617 MHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: Galileo, GPS

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G/5G NR, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, UMTS, EDGE, GPRS, HSPA, WCDMA

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
