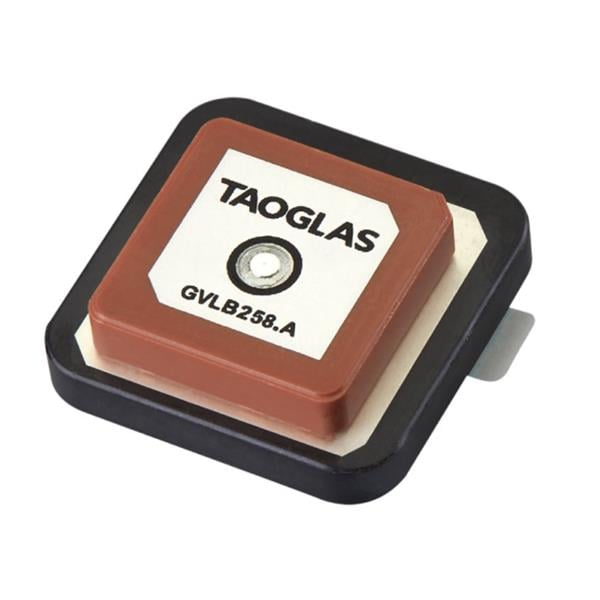

Taoglas GVLB258.A Outdoor Antennas GNSS L1/L5 PATCH ANTENNA

Gain: 2.3 dBi, 2.94 dBi, 2.87 dBi, 3.08 dBi

Width: 25 mm

Height: 8 mm

Length: 25 mm

Frequency: 1.575 GHz, 1.17645 GHz, 1.561 GHz

Impedance: 50 Ohms

Polarization: RHCP

Mounting Style: Adhesive Mount

Number of Bands: 4 Band

Mechanical Style: Patch

Ground Plane Size: 70 mm x 70 mm

Maximum Frequency: 1.186 GHz, 1.563 GHz, 1.587 GHz, 1.61 GHz

Minimum Frequency: 1.166 GHz, 1.559 GHz, 1.563 GHz, 1.593 GHz

Termination Style: Pin

Protocol - GPS, GLONASS: GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
