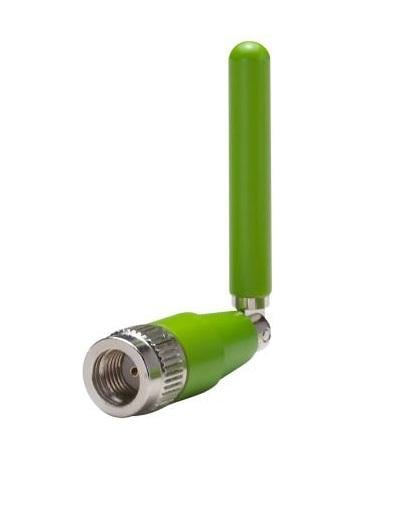

Taoglas GW.05.0153 Passive Antenna GW.05 2.4/5.8-7.125GHz Monopole Antenna RP-SMA(M) Hinged

Gain: 2.8 dBi, 3.6 dBi, 4.1 dBi

Style: Tilt/Swivel

Length: 62.33 mm

Diameter: 10 mm

Impedance: 50 Ohms

Application: Wireless Application, ISM Application

Unit Weight: 6 g

Polarization: Linear

Power Rating: 10 W

Mounting Style: Panel Mount

Electrical Type: Monopole

Number of Bands: 3 Band

Center Frequency: 2400 MHz, 2450 MHz, 2500 MHz, 5150 MHz, 5350 MHz, 5750 MHz, 5850 MHz

Mechanical Style: Whip

Maximum Frequency: 7.125 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM

Antenna Connector Type: RP-SMA Male

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: C-Band

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
