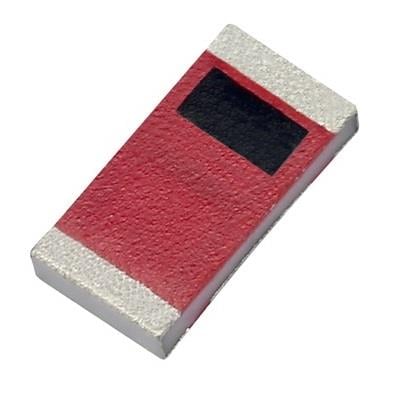

Taoglas GWLA.01 Passive Antenna GPS/WIFI LOOP ANTENNA

Gain: 1.52 dBi, 1.43 dBi

Style: Chip

Width: 1.6 mm

Height: 0.5 mm

Length: 3.2 mm

Bandwidth: 32 MHz, 100 Mhz

Impedance: 50 Ohms

Application: GPS/Galileo, WiFi, WLAN, ZigBee, Bluetooth, 802.11

Unit Weight: 20 mg

Polarization: Linear

Power Rating: 10 W

Mounting Style: PCB Mount

Electrical Type: Embedded

Number of Bands: 2 Band

Mechanical Style: Loop

Ground Plane Size: 80 mm x 40 mm

Maximum Frequency: 2.5 GHz

Minimum Frequency: 1.57542 GHz

Termination Style: SMD/SMT

Moisture Sensitive: Yes

Protocol - GPS, GLONASS: GPS

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth
