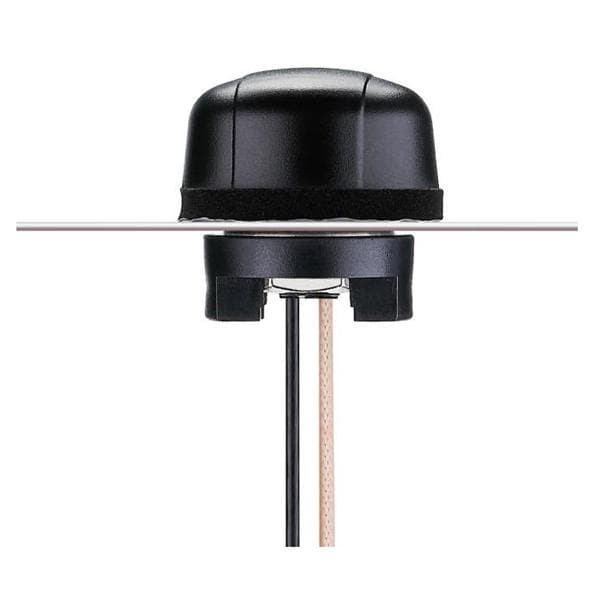

Taoglas MA131.A.LK.002 MIMO Hercules MA131 2in1 Permanent Mount GPS/GLONASS/Galileo 915MHz oe48*29mm

Gain: 4.32 dBi

VSWR: 2:1, 2

Style: Dome

Length: 28.5 mm

Diameter: 47.8 mm

IP Rating: IP67, IP69K

Impedance: 50 Ohms

Cable Type: 200 mm RG316, 200 mm RG174

Application: Cellular Application, Satellite Tracking/Navigation

Cable Length: 200 mm

Polarization: Linear

Power Rating: 5 W

Mounting Style: Direct / Permanent Mount

Electrical Type: Active

Number of Bands: 2 Band

Center Frequency: 915 MHz, 1.575 GHz

Mechanical Style: Module

Maximum Frequency: 1.606 GHz

Minimum Frequency: 915 MHz

Termination Style: Connector

Protocol - Sub GHz: ISM, RFID

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: Galileo, GLONASS, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
