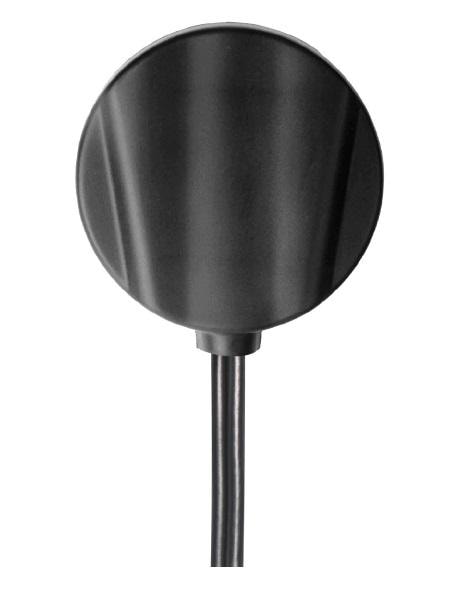

Taoglas MA204.A.LB.002 MIMO ADHESIVE MOUNT COMBO ANTENNA

Gain: 28 dB

VSWR: 2:1, 2.5:1

Style: Dome

Length: 10.8 mm

Diameter: 55 mm

IP Rating: IP65

Impedance: 50 Ohms

Cable Type: 3 M RG174 x 2

Application: AVL, Fleet Management

Cable Length: 3 m

Mounting Style: Adhesive Mount

Electrical Type: Active

Number of Bands: 2 Band

Center Frequency: 850 MHz, 900 MHz, 1.57542 GHz, 1.8 GHz, 1.9 GHz

Mechanical Style: Module

Maximum Frequency: 2.2 GHz

Minimum Frequency: 800 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: Galileo, GLONASS, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, UMTS, EDGE, HSPA
