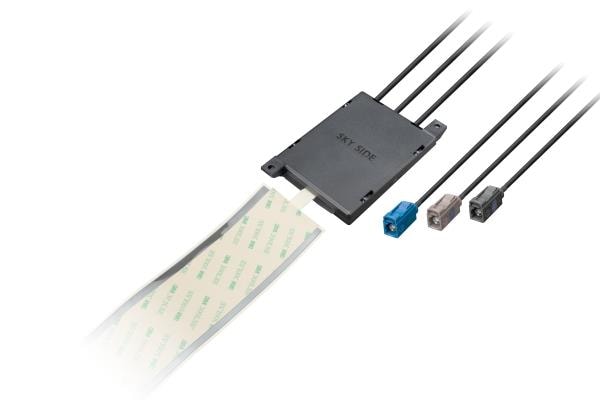

Taoglas MA2330.A.ACT.002 MIMO MA2330 Covert GPS, Wi-Fi AM/FM 3in1 Headliner Adhesive Antenna

Gain: 4 dBi, 3.7 dBi

Style: Panel, Square

Width: 83.99 mm

Height: 14.86 mm

Length: 664.33 mm

IP Rating: IP21

Impedance: 50 Ohms

Cable Type: 300 mm RG178

Application: Telematics, Transportation, Remote Monitoring

Unit Weight: 145 g

Cable Length: 300 mm

Polarization: RHCP

Mounting Style: Adhesive Mount

Electrical Type: Active

Number of Bands: 3 Band

Center Frequency: 535 kHz, 1605 kHz, 108 MHz, 2328 MHz, 2450 MHz, 5500 MHz, 1575.42 MHz, 1602 MHz

Mechanical Style: Module

Maximum Frequency: 5.83 GHz

Minimum Frequency: 88 MHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM, U-NII

Antenna Connector Type: FAKRA A, FAKRA C, FAKRA I, FAKRA K

Protocol - GPS, GLONASS: Galileo, GPS

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, UMTS, GPRS, WCDMA

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
