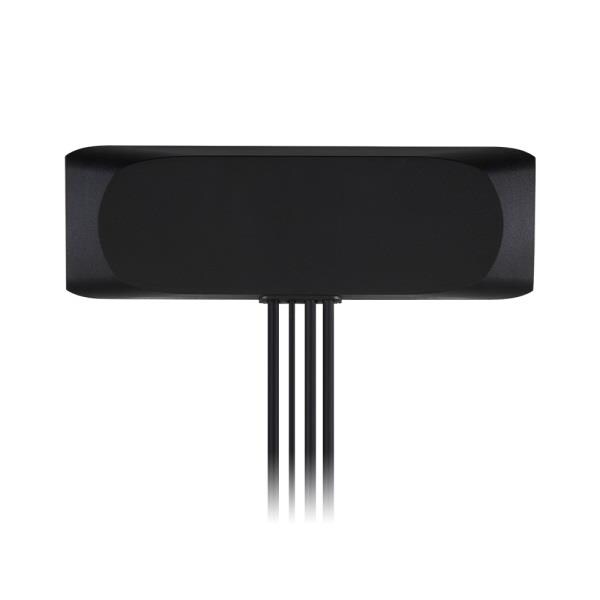

Taoglas MA244.LBIC.002 MIMO ADHESIVE MOUNT COMBO ANTENNA

VSWR: 1.5:1, 1.5:1, 5.8

Style: Panel, Rectangular

Width: 68 mm

Height: 13 mm

Length: 205.8 mm

IP Rating: IP65

Impedance: 50 Ohms

Cable Type: 1 M RG174, 1 M TGC200 x 2

Application: HD Video over LTE, First Responder, Emergency Services, Automotive Vehicle Tracking, Telematics

Unit Weight: 330 g

Cable Length: 1 m

Polarization: Linear, RHCP

Mounting Style: Adhesive Mount

Electrical Type: Active

Number of Bands: 4 Band

Center Frequency: 700 MHz, 800 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2500 MHz, 3450 MHz, 1575.42 MHz, 1602 MHz

Mechanical Style: Module

Maximum Frequency: 5.85 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male, RP-SMA Male

Protocol - GPS, GLONASS: Galileo, GLONASS, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, UMTS, GPRS, WCDMA
