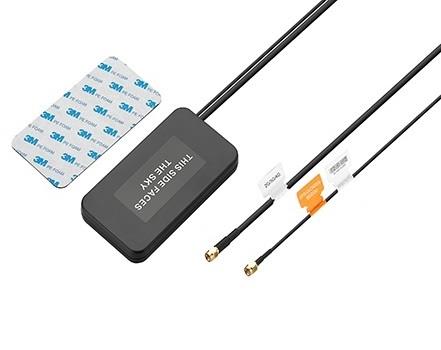

Taoglas MA252.A.LB.001 Vehicle Antennas Sentinel MA252 Adhesive Mount 2in1 GNSS LTE Antenna 139*76*14mm

Gain: 28.06 dB, 28.63 dB, 27.84 dB

VSWR: 3:1

Style: I-Bar

Width: 76 mm

Height: 14 mm

Length: 139 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: CFD-200, RG-174

Application: GNSS, LTE

Cable Length: 2 m

Polarization: Linear, RHCP

Power Rating: 5 W

Mounting Style: Adhesive Mount

Electrical Type: MIMO

Number of Bands: 2 Band

Center Frequency: 1.561098 GHz, 1.57542 GHz, 1.602 GHz

Mechanical Style: Module

Maximum Frequency: 3.6 GHz

Minimum Frequency: 698 MHz

Termination Style: SMA Male

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: GNSS

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE)
