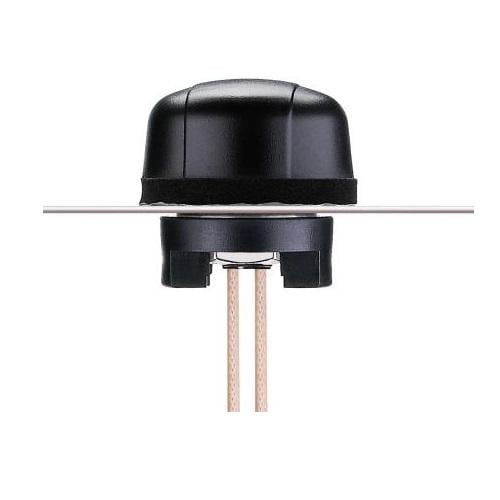

Taoglas MA510.C.CG.005 MIMO Hercules MA510 2in1 2.4/5.8GHz 2xMIMO Permanent Mount, 1M RG-316

Gain: 3.9 dBi, 3 dBi

VSWR: 2:1, 2:1

Style: Dome

Length: 29 mm

Diameter: 49 mm

IP Rating: IP67, IP69K

Impedance: 50 Ohms

Cable Type: 1 M RG316 x 2

Technology: 2.4/5GHz Dual Band MiMo

Application: Remote Monitoring, Smart Meter Systems, Construction Equipment, Public Safety

Unit Weight: 163.610 g

Cable Length: 1 m

Polarization: Linear

Power Rating: 2 W

Mounting Style: Direct / Permanent Mount

Electrical Type: Active

Number of Bands: 2 Band

Center Frequency: 2.45 GHz, 5.5 GHz

Mechanical Style: Module

Maximum Frequency: 5.8 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM

Antenna Connector Type: RP-SMA Male

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
