Gain: 5.1 dBi, 2.1 dBi, 2.9 dBi, 3.8 dBi, 2.8 dBi
VSWR: 2, 1.6:1

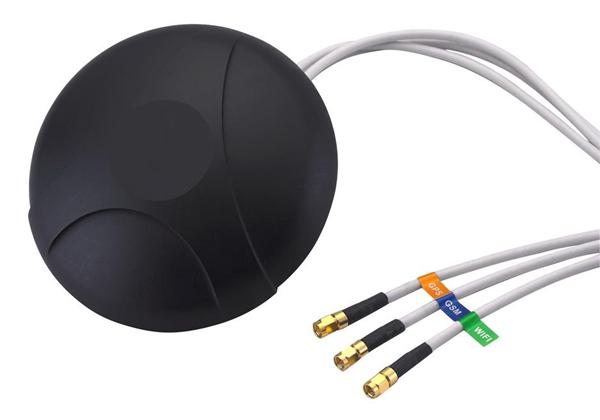

Style: Dome
Length: 39.5 mm
Diameter: 145.6 mm
Bandwidth: 10 MHz
IP Rating: IP67
Impedance: 50 Ohms
Cable Type: 3 M RG174, 3 M CFD200
Application: Vehicle Telematics, Remote Monitoring, Smart Meter Systems, Construction Equipment
Cable Length: 3 m
Polarization: Linear
Mounting Style: Direct / Permanent Mount
Electrical Type: Active
Number of Bands: 3 Band
Center Frequency: 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2450 MHz, 4800 MHz, 5200 MHz, 5500 MHz, 1575 MHz, 1602 MHz
Mechanical Style: Module
Maximum Frequency: 5.9 GHz
Minimum Frequency: 824 MHz
Termination Style: Connector
Protocol - Sub GHz: IoT, ISM
Antenna Connector Type: SMA Male
Protocol - GPS, GLONASS: Galileo, GLONASS, GPS
Protocol - WiFi - 802.11: 802.11, WiFi, WLAN
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, WCDMA, HSPA
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
