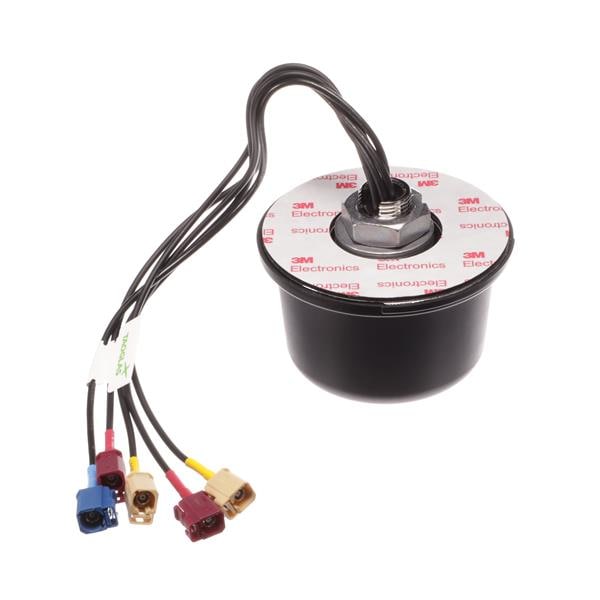

Taoglas MA850.A.LBICG.002 MIMO PERMANENT MOUNT COMBO ANTENNA

Gain: 31 dBi, 31 dBi, 31 dBi

VSWR: 3:1, 2:1, 2, 3.5

Style: Dome

Length: 57.4 mm

Diameter: 94.3 mm

IP Rating: IP69K

Impedance: 50 Ohms

Cable Type: 300 mm RG174 x 5

Application: Bus, Telematics, Remote Asset, Pipeline Monitoring, Digital Signage, HD Video over LTE, First Responder, Emergency Services, Automotive Vehicle Tracking, Telematics

Cable Length: 0.3 m

Polarization: Linear, RHCP

Mounting Style: Direct / Permanent Mount

Electrical Type: Active

Number of Bands: 5 Band

Center Frequency: 700 MHz, 800 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2300 MHz, 2600 MHz, 3500 MHz, 1575.42 MHz, 1602 MHz, 1561.098 MHz

Mechanical Style: Module

Maximum Frequency: 5.85 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Antenna Connector Type: FAKRA C, FAKRA D, FAKRA I

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GPS, IRNSS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, WCDMA, HSPA
