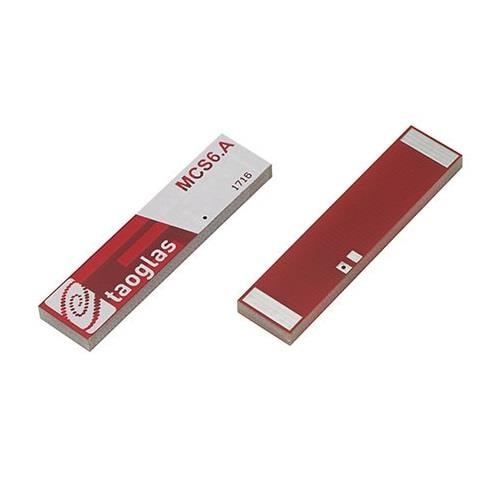

Taoglas MCS6.A Passive Antenna MCS6.A NB-IoT / CAT M1 Low Profile LTE/Cellular SMD Dielectric Antenna

Gain: - 0.02 dBi, - 1.05 dBi, 2.76 dBi, 3.26 dBi, 3.11 dBi, 3.75 dBi

Style: Ceramic

Width: 10 mm

Height: 3 mm

Length: 42 mm

Impedance: 50 Ohms

Technology: NB-IoT / CAT M1

Application: Automotive, Medical, Smart City, Smart Meter

Unit Weight: 2.500 g

Polarization: Linear

Power Rating: 5 W

Mounting Style: PCB Mount

Number of Bands: 6 Band

Center Frequency: 700 MHz, 1.7 GHz, 1.9 GHz

Mechanical Style: Chip

Maximum Frequency: 2.69 GHz

Minimum Frequency: 698 MHz

Termination Style: SMD/SMT

Moisture Sensitive: Yes

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G/5G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, UMTS, GPRS, WCDMA, HSPA
