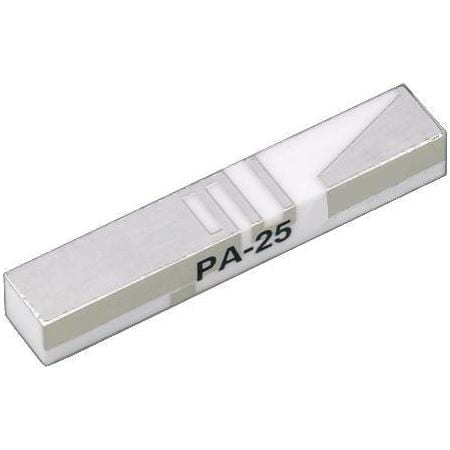

Taoglas PA.25a Passive Antenna Anam PA.25A 35*6*5mm 3G/2G SMD PIFA Antenna

Gain: 1.49 dbi, 0.92 dBi, 1.76 dBi, 1.35 dBi, 2.4 dBi, 2.53 dBi, 2.38 dBi, 2.3 dBi, 2.46 dBi, 2.69 dBi, 4.62 dBi

VSWR: 3:1

Style: Ceramic

Width: 6 mm

Height: 6 mm

Length: 35 mm

Impedance: 50 Ohms

Technology: Cellular 2G/3G

Application: Cellular Application

Unit Weight: 3 g

Polarization: Linear

Power Rating: 5 W

Mounting Style: PCB Mount

Electrical Type: PIFA

Number of Bands: 6 Band

Center Frequency: 800 MHz, 850 MHz, 900 MHz, 1700 MHz, 1800 MHz, 1900 MHz, 2100 MHz

Mechanical Style: Chip

Maximum Frequency: 2.2 GHz

Minimum Frequency: 800 MHz

Moisture Sensitive: Yes

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
