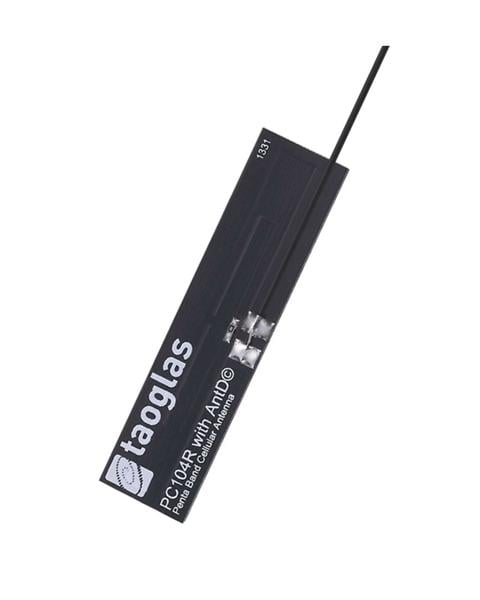

Taoglas PC104R.A.07.0165C PCB Antennas PC104R 3G/2G FR4 PCB Antenna with Diagnostic Resistor, 165mm oe1.37

Gain: 0.77 dBi, 0.99 dBi, 2.26 dBi, 2.13 dBi, 2.39 dBi

Style: I-Bar

Width: 20 mm

Height: 1 mm

Length: 80 mm

Impedance: 50 Ohms

Cable Type: 1.37 mm Coax

Application: GSM, CDMA, DCS, PCS, WCDMA, UMTS, HSDPA, GPRS, EDGE

Cable Length: 164.9 mm

Polarization: Linear

Power Rating: 50 W

Mounting Style: Adhesive Mount

Electrical Type: Embedded

Number of Bands: 5 Band

Mechanical Style: PCB Trace

Maximum Frequency: 2.17 GHz

Minimum Frequency: 824 MHz

Termination Style: IPEX

Antenna Connector Type: IPEX

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
