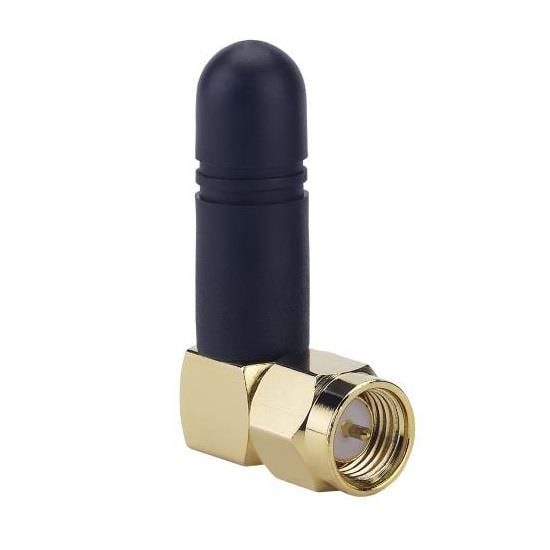

Taoglas TG.19.0112 Passive Antenna TG.19 3G/2G Connector Mount Monopole Antenna

Gain: 0 dBi, 0 dBi, 0.5 dBi, 1.2 dBi

VSWR: 2:1, 2.3:1, 2.3:1, 2:1

Style: Stubby Right Angle

Width: 17 mm

Length: 28.5 mm

Diameter: 1.8 mm

Impedance: 50 Ohms

Technology: Cellular

Application: Cellular Application

Unit Weight: 7 g

For Use With: GSM, DCS, PCS, CDMA, GPRS, EDGE

Polarization: Linear

Power Rating: 5 W

Mounting Style: Panel Mount

Electrical Type: Monopole

Number of Bands: 4 Band

Center Frequency: 850 MHz, 900 MHz, 1.8 GHz, 1.9 GHz

Mechanical Style: Whip

Maximum Frequency: 1.99 GHz

Minimum Frequency: 824 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, WCDMA, HSPA, EDGE, GPRS
