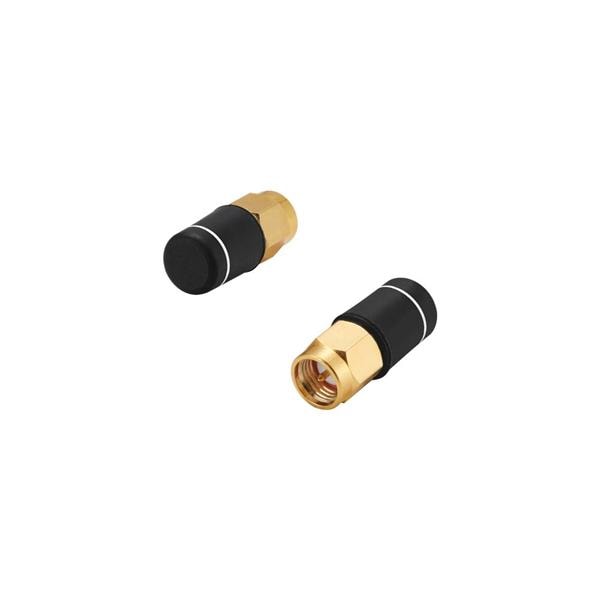

Taoglas TI.83.A111 Terminal Antenna Terminal Antenna 863-873MHz SMA Male Straight

Gain: - 2.28 dB, - 2.38 dB, - 7.02 dB

Style: Straight

Width: 8.9 mm

Length: 21 mm

Bandwidth: 863 MHz to 873 MHz

Frequency: 863 MHz to 873 MHz

IP Rating: IP67

Impedance: 50 Ohms

Polarization: Linear

Mounting Style: Connector

Frequency Range: 863 MHz to 873 MHz

Number of Bands: 1 Band

Mechanical Style: Straight

Ground Plane Size: 15 cm x 9 cm

Maximum Frequency: 873 MHz

Minimum Frequency: 863 MHz

Termination Style: Connector

Protocol - Sub GHz: IoT

Antenna Connector Type: SMA Male

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
