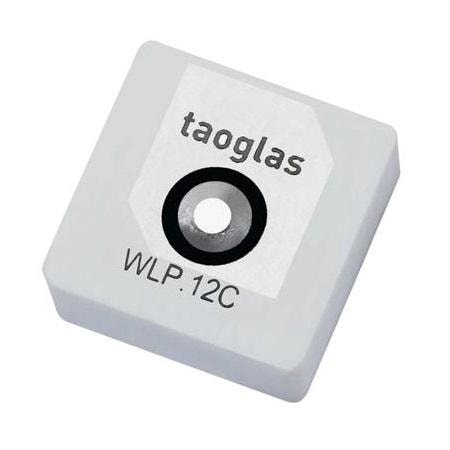

Taoglas WLP.4958.12.4.A.02 Passive Antenna WLP.4958.12.4.A.02 4900-5825MHz 12*11.8*4mm Patch Antenna

Gain: 6 dBi

VSWR: 1.5

Style: Ceramic

Width: 12 mm

Height: 4 mm

Length: 12 mm

Bandwidth: 450 MHz

Impedance: 50 Ohms

Application: Wireless Application

Unit Weight: 4.425 g

For Use With: WiFi/WLAN/ISM/Public Safety/Zigbee

Polarization: Linear

Mounting Style: Adhesive Mount

Electrical Type: Embedded

Number of Bands: 1 Band

Center Frequency: 5.18 GHz

Mechanical Style: Patch

Maximum Frequency: 5.825 GHz

Minimum Frequency: 4.9 GHz

Termination Style: Pin

Protocol - WiFi - 802.11: 802.11, WLAN, WiFi

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
