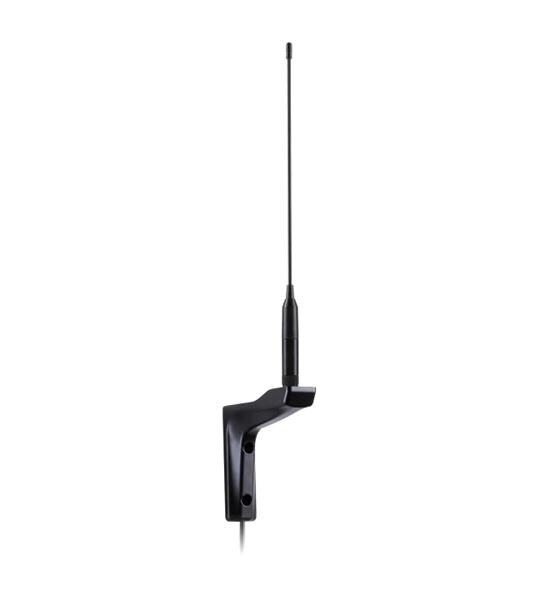

Taoglas WM.24.A.305111 Passive Antenna WM.24.A Cyclops 2.4GHz Wall Mount Flexible Whip Antenna

Gain: 2.97 dBi

Style: Straight with Base

Length: 307 mm

Diameter: 16 mm

IP Rating: IP65

Impedance: 50 Ohms

Cable Type: 3 M CFD200

Application: Remote Monitoring, Connected Enterprise, Agriculture, Security

Unit Weight: 330 g

Cable Length: 3 m

Polarization: Linear

Power Rating: 10 W

Mounting Style: Bracket Mount

Number of Bands: 1 Band

Center Frequency: 2.45 GHz

Mechanical Style: Whip

Maximum Frequency: 2.5 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM

Antenna Connector Type: SMA Male

Protocol - WiFi - 802.11: 802.11, WLAN, WiFi

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
