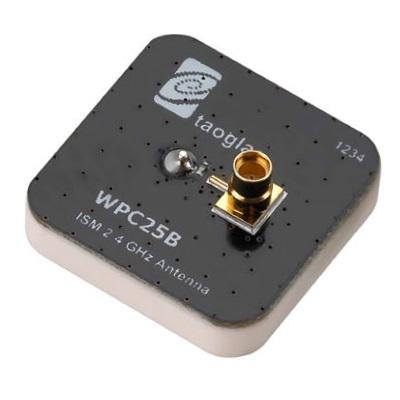

Taoglas WPC.25B.35 Passive Antenna 25*25*5.3mm WPC.25B.35 2.4GHz Ceramic Patch Antenna with on-board MMCX(F)

Gain: 2 dBi

VSWR: 2:1

Style: Ceramic

Width: 25 mm

Height: 4.5 mm

Length: 25 mm

Bandwidth: 100 MHz

Impedance: 50 Ohms

Application: Wireless Application

Unit Weight: 5 g

Polarization: Linear

Mounting Style: PCB Mount

Number of Bands: 1 Band

Center Frequency: 2.45 GHz

Mechanical Style: Patch

Maximum Frequency: 2.5 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM

Antenna Connector Type: MMCX Female

Protocol - WiFi - 802.11: 802.11, WLAN, WiFi

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
