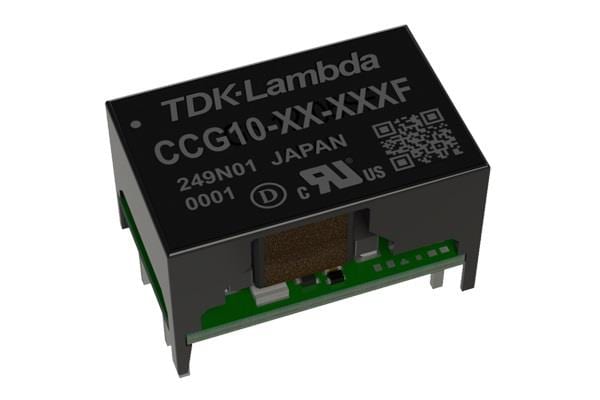

TDK-Lambda CCG10-24-05SF Isolated 10W 24Vin 5Vout Single DIP
Manufacturer: TDK-Lambda Model: CCG10-24-05SF - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Width: 12.4 mm (0.488 in)
Height: 11.5 mm (0.453 in)
Length: 19 mm (0.748 in)
Industry: Industrial
Output Power: 10 W
REACH - SVHC: Details
Mounting Style: Through Hole
Isolation Voltage: 1.5 kV
Number of Outputs: 1 Output
Input Voltage - Max: 36 V
Input Voltage - Min: 9 V
Input Voltage, Nominal: 24 V
Output Voltage-Channel 1: 5 V
Maximum Operating Temperature: + 90 C
Minimum Operating Temperature: - 40 C
