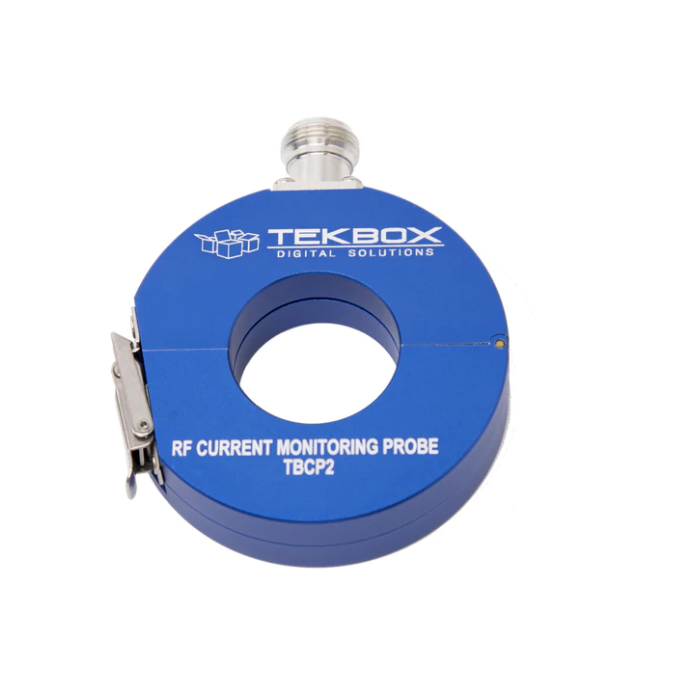

Tekbox TBCP2-250 RF Current Monitoring Probes

Characterized frequency range: 10 kHz to 250 MHz

Aperture diameter: 32 mm

Outside diameter: 73 mm

Height: 20 mm

Weight: 320 g

Connector type: N female

Transfer impedance: 0 to 16 dBΩ between 100 kHz and 250 MHz

Max. primary current (DC – 400 Hz): 80 A

Max. primary current (RF): 3 A

Max. core temperature: 125 °C
