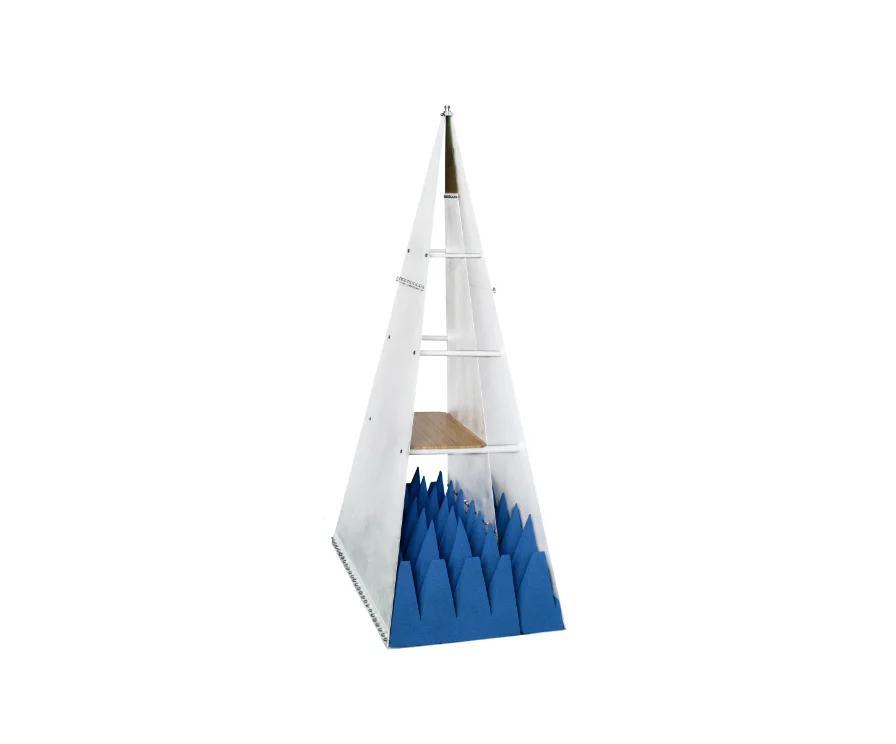

Tekbox TBGTC1 Open GTEM Cell (0.009 MHz – 6 GHz)
Manufacturer: Tekbox Model: TBGTC1 Price (exclude VAT) USD 2,963.40 Price (include VAT) USD 3,259.74 Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Septum Height: 250 mm at the location of the EUT-board
Outer dimensions (LxWxH): 1452x780x520 mm
Approx Cell Weight: 13 kg.
Maximum EUT size (LxWxH): 200x200x150 mm
Defined test volume (±3 dB < 3000 MHz, LxWxH): 100x100x100 mm
GTEM cell connectors: N-female
Nominal cell impedance: 50 Ohm
Frequency range: 0.009 MHz – 6 GHz
Wave impedance: 377 Ohm
Maximum continuous RF input power: 600W
VSWR: 1:1.3 typical, 1:1.9 max.
Field uniformity on maximum test volume: up to 3 GHz < ± 6 dB
