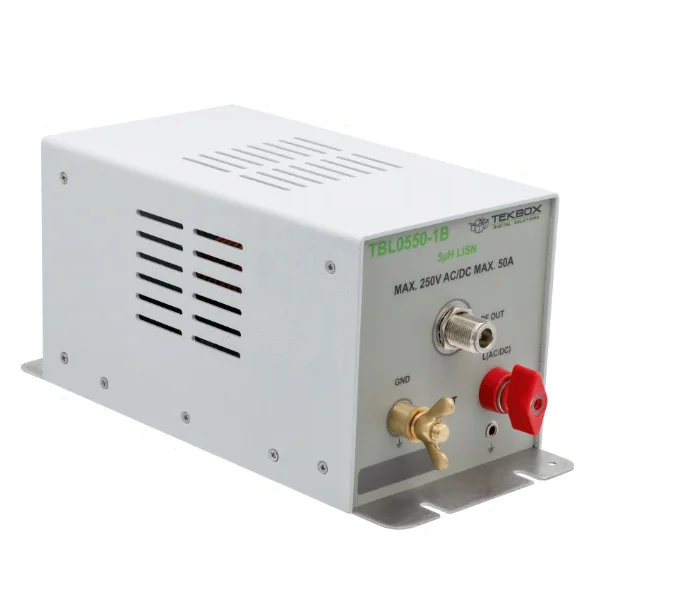

Topology: single path, configurable, 50Ω // 5µH + 1Ω, 50Ω // 5µH; the internal capacitor can be disconnected for ISO 7637-2 and DO-160 set ups; an external 10µF capacitor is required for DO -160; the LISN is factory setup to 50Ω // 5µH + 1Ω, other configurations require setting of an internal high current jumper.
Supported standards: CISPR 16-1-2, CISPR 25, MIL-STD-461G, DO-160, ISO11452-4 and ISO 7637-2
Characterized frequency range: 10 kHz – 400 MHz
DC Resistance: < 5 mΩ Source+ to EUT+; < 5 mΩ Source- to EUT
Maximum current: 50A continuous; see plot with heat up characteristics, chapter 1.8
Maximum operating voltage range: 0 – 250V AC @50/60 Hz, 130V AC @ 400Hz, 250V DC.
Absolute maximum rating of internal components: 450V DC.
EUT connector: binding post, M6, 4mm center hole, 63A, 1kV, Schützinger POL 631 L
SOURCE connector: binding post, M6, 4mm center hole, 63A, 1kV, Schützinger POL 631 L
EARTH: 6 mm Earth stud with wing-nut, exposed stainless steel bottom panel with mounting slots and countersunk hole for 4mm screw
Jumper: Harwin D3087-98
Dimensions: 125 mm x 125 mm x 275 mm
Weight: 1.75 kg
