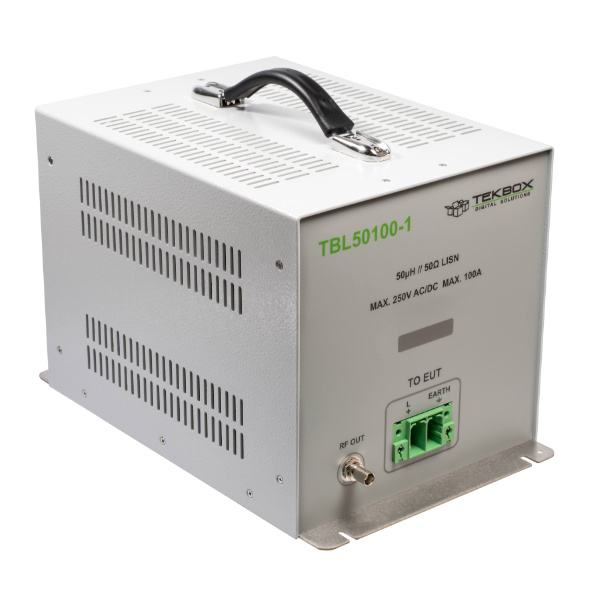

Tekbox TBL50100-1 Line Impedance Stabilisation Network LISN-CISPR 16 (9 kHz - 100 MHz)
Manufacturer: Tekbox Model: TBL50100-1 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
LISN type: V-AMN, 50 Ω // 50 µH; no 250 µH pre-filter
Specified frequency range: 150 kHz – 30 MHz
Characterized frequency range: 9 kHz -100 MHz
DC Resistance: < 45 mΩ
Maximum current: 70 A continuous, 100A for 10 minutes; see heat up characteristics plot
Operating voltage range: 0 – 250V DC; 0 – 250V AC (50/60 Hz)
RF connector: BNC female
Dimensions: 350 mm x 230 mm x 230 mm
Weight: 5.3 kg
