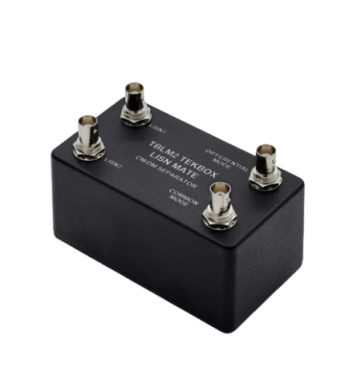

Tekbox TBLM02 Line Impedance Stabilisation Network (9kHz – 110 MHz)
Manufacturer: Tekbox Model: TBLM02 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Nominal frequency range: 150 kHz – 100 MHz
Usable frequency range: 9kHz – 110 MHz
Port impedance
│ZLISN1│, │ZLISN2│,│ZCM│: 150 kHz – 1 MHz: 30…55 Ohm
1 MHz -30 MHz: 50….60 Ohm
30 MHz – 100 MHz: 50….70 Ohm
│ZDM│: 150 kHz – 1 MHz: 30…50 Ohm
1 MHz -30 MHz: 40….50 Ohm
30 MHz – 100 MHz: 40….70 Ohm
│ZLISN1│: independent of the termination at the LISN2 port
│ZLISN2│: independent of the termination at the LISN1 port
│ZCM LISN1-LISN2│: 25 Ohm nominal
│ZDM LISN1-LISN2│: 100 Ohm nominal
Maximum RF level at any BNC port: 27dBm
Maximum DC current at any BNC port: 30 mA
