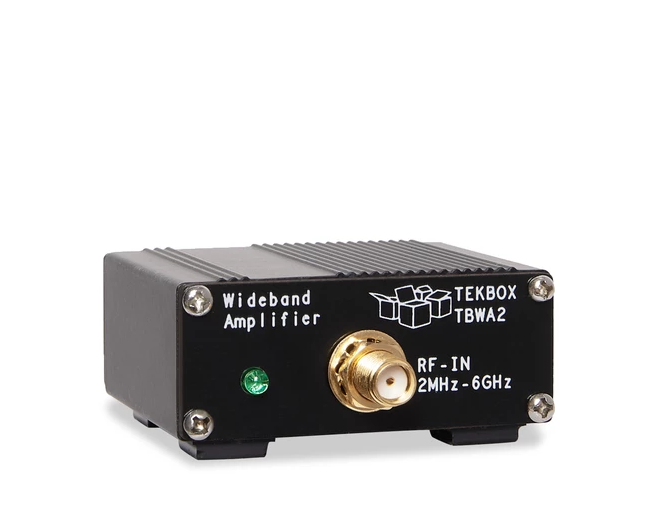

Tekbox TBWA2/40dB Wideband Amplifier
Manufacturer: Tekbox Model: TBWA2/40dB Guarantee: 12 Month - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Input: 50 Ohm, SMA
Output: 50 Ohm, SMA
Nominal supply Voltage: 4.5 - 5V, typ. 210mA, Mini-USB-B connector
Maximum supply voltage: 5.5V
Maximum input power: -10dBm
1dB output compression point @ 2GHz: +20dBm
Reverse isolation S12, 0.1 …6GHz: 40dB
Noise Figure @ 2GHz: 5 dB
Gain:
1 MHz: 30 dB
10 MHz: 40.2 dB
100 MHz: 40.2 dB
500 MHz: 40 dB
1 GHz: 39.5 dB
3 GHz: 36.4 dB
4.5 GHz: 34.6 dB
6 GHz: 34.7 dB
