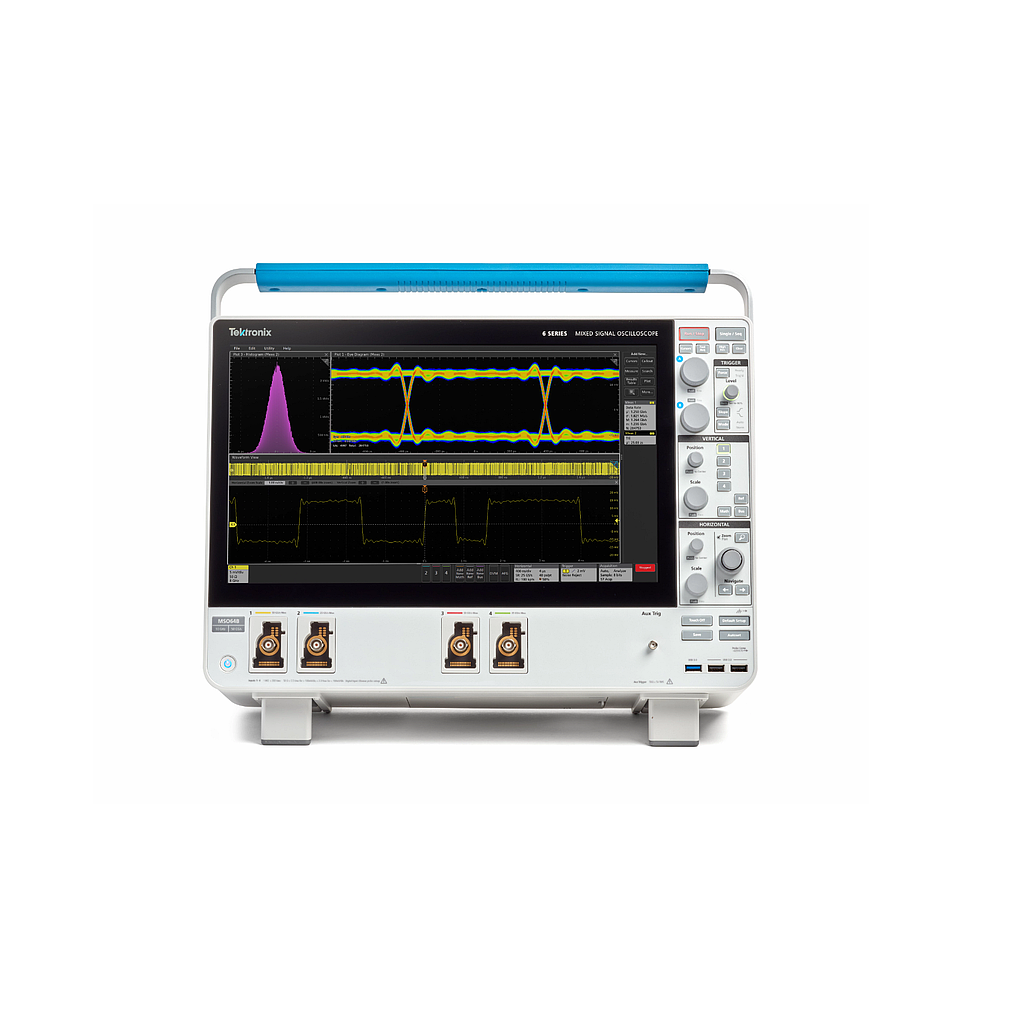

FlexChannel® inputs: 4
Maximum analog channels: 4
Maximum digital channels (with optional logic probes): 32
Bandwidth (calculated rise time): 1 GHz (400 ps)
Sample Rate: 50 GS/s on 2 analog / digital channels (20 ps resolution); 25 GS/s on 4 analog / digital channels (40 ps resolution); 12.5 GS/s on > 4 analog / digital channels (80 ps resolution)
Record length (all analog / digital channels):
• 62.5 Mpoints standard
• 125, 250, 500 Mpoints, or 1 Gpoints (optional)
Waveform capture rate:
• >500,000 waveforms/s (Peak Detect, Envelope acquisition mode)
• >30,000 wfms/s (all other acquisition modes)
Vertical Resolution
• 8 bits @ 50 GS/s; 10 GHz on 2 channels
• 8 bits @ 25 GS/s; 10 GHz on 4 channels
• 12 bits @ 12.5 GS/s (High Res); 5 GHz on 4 channels (8 bits @ 12.5 GS/s; 5 GHz on >4 channels)
• 13 bits @ 6.25 GS/s (High Res); 2 GHz on 4 channels (12 bits @ 6.25 GS/s (High Res); 2 GHz on >4 channels)
• 14 bits @ 3.125 GS/s (High Res); 1 GHz on 4 channels (13 bits @ 3.125 GS/s (High Res); 1 GHz on >4 channels)
• 15 bits @ 1.25 GS/s (High Res); 500 MHz on 4 channels (14 bits @ 1.25 GS/s (High Res); 500 MHz on >4 channels)
• 16 bits @ ≤625 MS/s (High Res); 200 MHz on 4 channels (15 bits @ 625 MS/s (High Res); 200 MHz on >4 channels)
• 16 bits @ ≤312.5 MS/s (High Res); 100 MHz on >4 channels
Arbitrary/Function Generator (Opt.): 13 predefined waveform types with up to 50 MHz output
Digital voltmeter: 4-digit DVM (Free with product registration)
Trigger frequency: 8-digit frequency counter (free with product registration)
Display:
• 15.6-inch (396 mm) TFT color
• High Definition (1,920 x 1,080) resolution
• Capacitive (multi-touch) touchscreen
Connectivity: USB Host (7 ports), USB 3.0 Device (1 port), LAN (10/100/1000 Base-T Ethernet), Display Port, DVI-I, VGA
Dimensions: 14.6 in (371 mm) H x 17.9 in (454 mm) W x 8.0 in (204 mm) D
Weight: <29.8 lbs (13.52 kg)
Include: 6-SREMBD (quantity x1) Installed Option; Embedded protocol triggering and analysis (I2C, SPI)
Include: 6-SRUSB2 (quantity x1) Installed Option; USB protocol triggering and analysis (USB2.0 LS, FS, HS)
