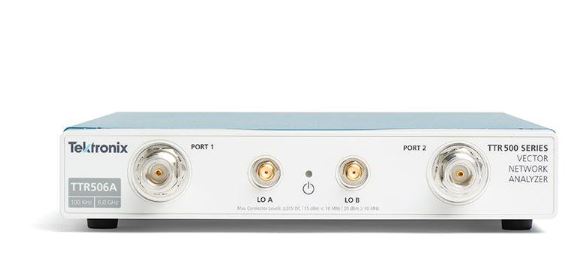

Tektronix TTR506A Vector Network Analyzers (6GHz, 2 port)

Name: Tektronix TTR506A Vector Network Analyzers (6GHz, 2 port)
Brand: TEKTRONIX

ManufacturerTEKTRONIX(View more products from this manufacturer)

ModelTTR506A

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Frequency range

TTR503A 100 kHz to 3.0 GHz
TTR506A 100 kHz to 6.0 GHz
Ports 2-ports, Type-N female connectors
Measurements Two-port, two-path S-parameters (S11, S12, S21, S22) and related measurements.
Connectivity USB 2.0
Software VectorVu-PC™ (requires Windows® 7/8/10, 64-bit)
100 to 240 V AC, 50/60 Hz
Output: + 5 V ±1% 4 A maximum
Physical characteristics
Length: 11.25” (28.58 cm)
Width: 8.125” (20.64 cm)
Depth: 1.75” (4.45 cm)
Weight: 3.5 lbs. (1.59 kg)
