Featured devices
Stratix IV GX EP4SGX230KF40C2N FPGA or,
Stratix IV GX EP4SGX530KH40C2N FPGA
Configuration status and set-up elements
Fast passive parallel (FPP) configuration via a MAX® II EPM2210 CPLD and flash memory
On-board USB-BlasterTM download cable using Quartus II Programmer
Clocks
On-board clock oscillators: 50 MHz, 100 MHz, 125 MHz, 148.5 MHz, 155.52 MHz, and 156.25 MHz
SMA connectors for external clock input
SMA connectors for clock output
General user input/output
LEDs
LCD display
Push-button and dual in-line package (DIP) switches
Memory devices
512-MB DDR3 SDRAM with a 64-bit data bus
128-MB DDR3 SDRAM with a 16-bit data bus
Two 4-MB QDR II+ SRAMs with 18-bit data buses
64-MB sync flash and 2-MB SSRAM
Component and interfaces
PCI Express x8 edge connector
10/100/1000BASE-T Ethernet PHY with RJ-45 connector
Two HSMC connectors
HDMI video output
3G-SDI video input and output
Power measurement circuitry
Temperature measurement circuitry
Power
Laptop DC input
PCI Express edge connector power
Power measurement circuitry
Other features
PCI Express half-length, full-height (6.6" x 4.376") board format
RoHS compliant

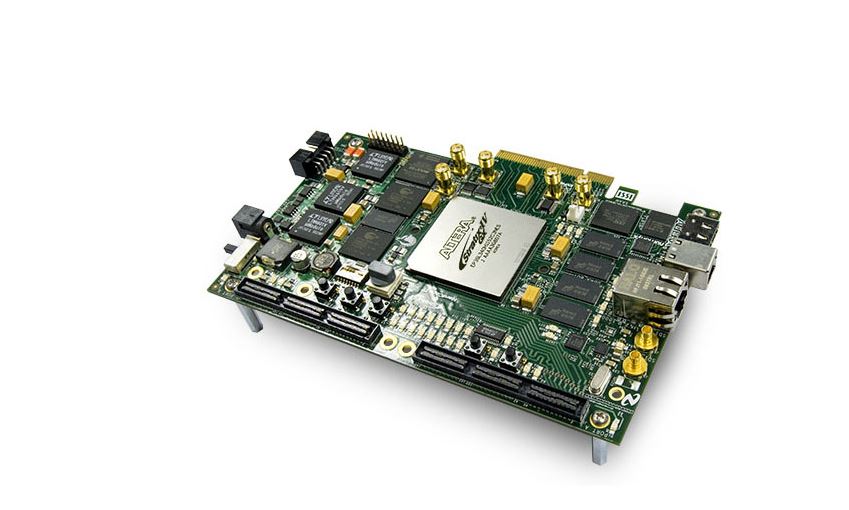

The Altera® Stratix® IV GX FPGA Development Kit deliver a complete system-level design environment that includes both the hardware and software needed to immediately begin developing FPGA designs. With a PCI-SIG® -compliant board and a 1-year license for Quartus® II design software, you can:
