FPGA Device
Cyclone V SoC 5CSEMA5F31C6 Device
Dual-core ARM Cortex-A9 (HPS)
85K Programmable Logic Elements
4,450 Kbits embedded memory
6 Fractional PLLs
2 Hard Memory Controllers
Configuration and Debug
Quad Serial Configuration device – EPCQ256 on FPGA
On-Board USB Blaster II (Normal type B USB connector)
Memory Device
64MB (32Mx16) SDRAM on FPGA
1GB (2x256Mx16) DDR3 SDRAM on HPS
Micro SD Card Socket on HPS
Communication
Two Port USB 2.0 Host (ULPI interface with USB type A connector)
USB to UART (micro USB type B connector)
10/100/1000 Ethernet
PS/2 mouse/keyboard
IR Emitter/Receiver
Connectors
Two 40-pin Expansion Headers
One 10-pin ADC Input Header
One LTC connector (One Serial Peripheral Interface (SPI) Master ,one I2C and one GPIO interface )
Display
24-bit VGA DAC
Audio
24-bit CODEC, Line-in, line-out, and microphone-in jacks
Video Input
TV Decoder (NTSC/PAL/SECAM) and TV-in connector
ADC
Fast throughput rate: 1 MSPS
Channel number: 8
Resolution: 12 bits
Analog input range : 0 ~ 2.5 V or 0 ~ 5V as selected via the RANGE bit in the control registe
Switches, Buttons and Indicators
4 User Keys (FPGA x4)
10 User switches (FPGA x10)
11 User LEDs (FPGA x10 ; HPS x 1)
2 HPS Reset Buttons (HPS_RST_n and HPS_WARM_RST_n)
Six 7-segment displays
Sensors
G-Sensor on HPS
Power
12V DC input
Features
LCD
7-inch panel
800x480 pixels
24-bits color depth
TTL interface
Multi-touch
Capacitive Touch Screen
Multi-touch Gestures
Single Touch Support
Interface
IDE Connector
2x20 GPIO connector with ITG (IDE to GPIO) adapter

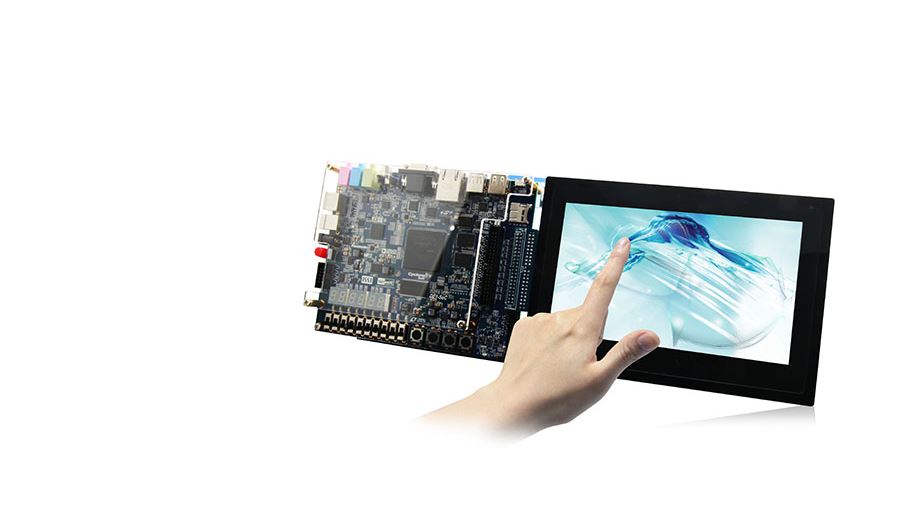

DE1-SoC-MTL delivers everything you need to develop multimedia applications using a digital multi-touch panel and includes complete reference designs and source code for implementing on a wide range of applications. The fully integrated kit allows developers to rapidly customize to best suit their specific application. The DE1-SoC-MTL features the DE1-SoC development board comes with the Cyclone V SoC FPGA, and the Terasic Multi-touch LCD Module (MTL), which is an all-purpose capacitive touch-screen for FPGA applications it provides multi-touch gesture and single-touch support. An IDE cable with an IDE to GPIO adapter (ITG) is used to interface the MTL with DE1-SoC board through a 2x20 GPIO interface.
The DE1-SoC-MTL is preconfigured with an FPGA hardware reference design including several ready-to-run demonstration
applications stored on the provided SD card. Software developers can use these reference designs as their platform to quickly
architect, develop, and build complex embedded systems
