Terasic Multimedia Touch Panel Daughter Board (MTDB)
Color LCD touch-screen display
800 x 480 resolution
24-bit CD-quality Audio CODEC with line-in, line-out, and microphone-in jacks
10/100 Ethernet physical layer/media access control (PHY/MAC)
Connectors
VGA output
Composite TV-in
Audio-out, audio-in, and microphone-in
4-bit Secure digital (SD) card
Serial connector (RS-232 DB9 port)
PS/2
Ethernet connector (RJ-45)
8-pin debug I/O
Size：125*100 mm
Cables and accessories
128-Mbyte SD card and USB-to-SD card adapter
Ethernet (RJ-45) cable (7 ft.),Ethernet crossover adapter
Nios II Evaluation Kit CD-ROM
Example applications
Application selector
Picture viewer
Mandelbrot acceleration with the Nios C2H compiler
Web server/Remote FPGA configuration
Hardware tutorials
Create an FPGA design in one hour
Build a 32-bit soft processor system inside an FPGA
Software tutorials
My First Software Application
Complete documentation
Quick start guide
User guide
Reference manual
Board schematic, layout, and bill of materials
Product and partner information
Altera Complete Design Suite DVD (Free):
Quartus® II Web Edition (FPGA design software)
(We provide Quartus II Web Edition software. To learn more about the details please visit Quartus II Software—Subscription Edition and Web Edition Comparison )
ModelSim®-Altera Web Edition (FPGA simulation software from ModelSim)
Nios II Embedded Design Suite (32-bit microprocessor software)
MicroC/OS-II real-time operating system evaluation
Nios II C-to-Hardware acceleration compiler evaluation
NicheStack TCP/IP Network Stack - Nios II Edition evaluation
SD/MMC SPI IP Core evaluation licensing avaliable through El Camino
MegaCore® IP Library (Library of intellectual property cores)
The NEEK upgrade package is perfectly for users who have Cyclone III FPGA Starter Kit to upgrade their Cyclone III Starter boards into a Nios II Embedded Evaluation Kit, Cyclone III Edition . This kit is a first-class, low-cost evaluation platform for embedded developers. Software developers, especially those new to FPGA design, can install and evaluate the Nios II Embedded Design Suite—a comprehensive software development suite for embedded applications—all at no cost. The included software tutorials and design examples also come with full source code showing applications such as Picture Viewer, Web Server, C-to-Hardware (C2H) acceleration and graphics.

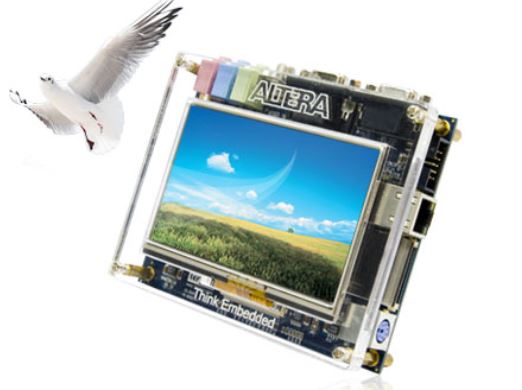

The quality of the NEEK upgrade package is as high as Altera's Nios II Embedded Evaluation Kit, Cyclone III Edition designed and produced by Terasic Technologies. Having the NEEK upgrade package, users are able to connect the LCD multimedia daughter board directly to the Cyclone III FPGA Starter Board without using a cable (Please refer to the picture below).
