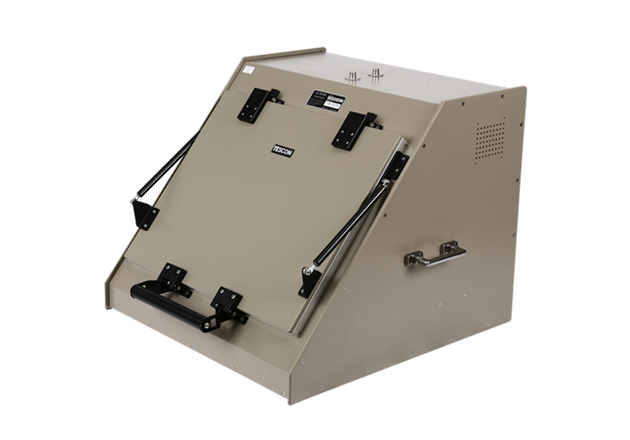

◈ Mechanical Specifications
Basic I/O connectors
RF connectors: six(6) N(f) outside and SMA(f) inside

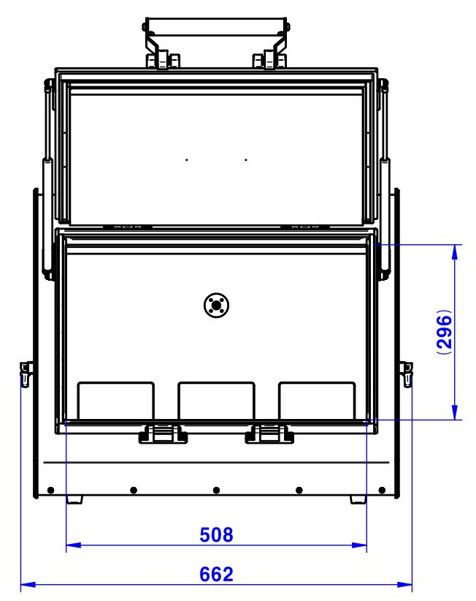

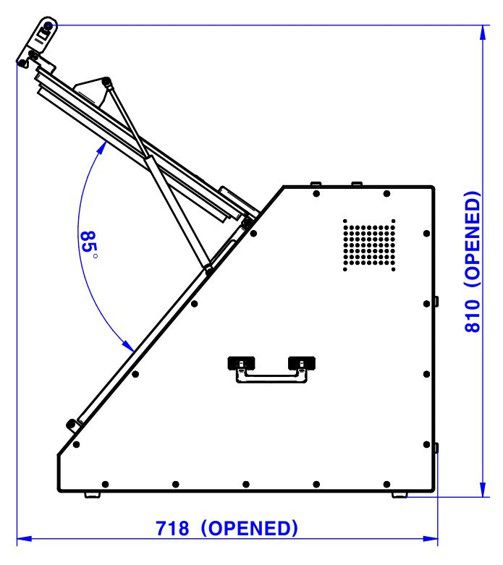

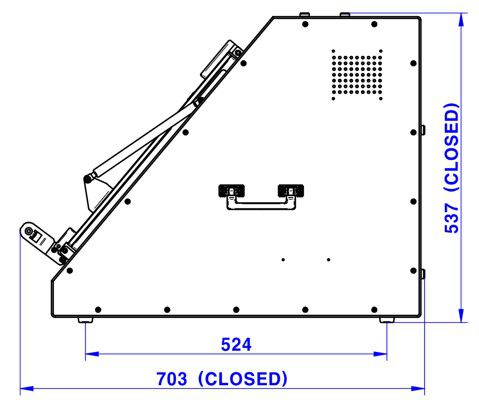

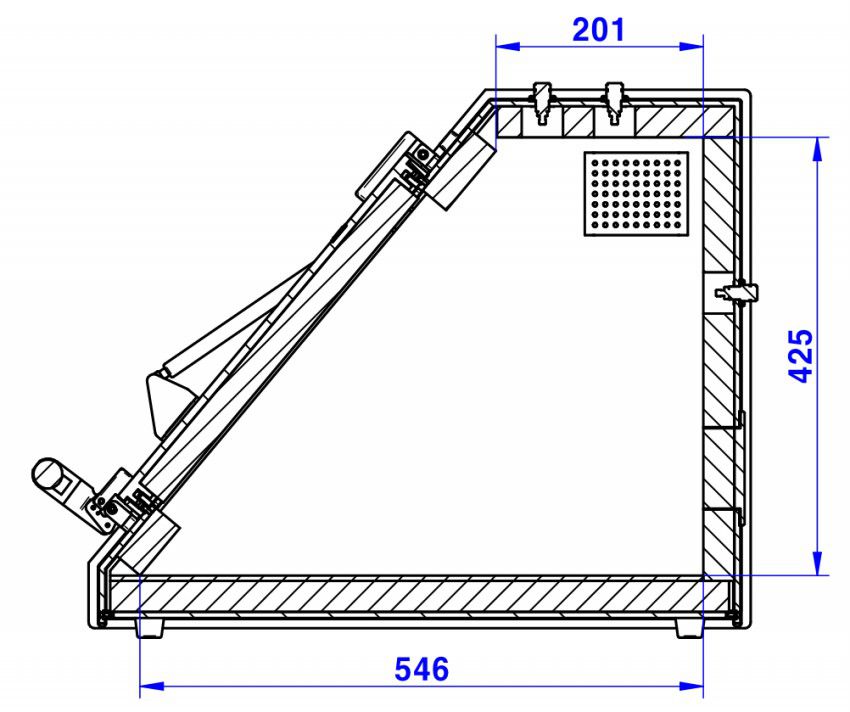

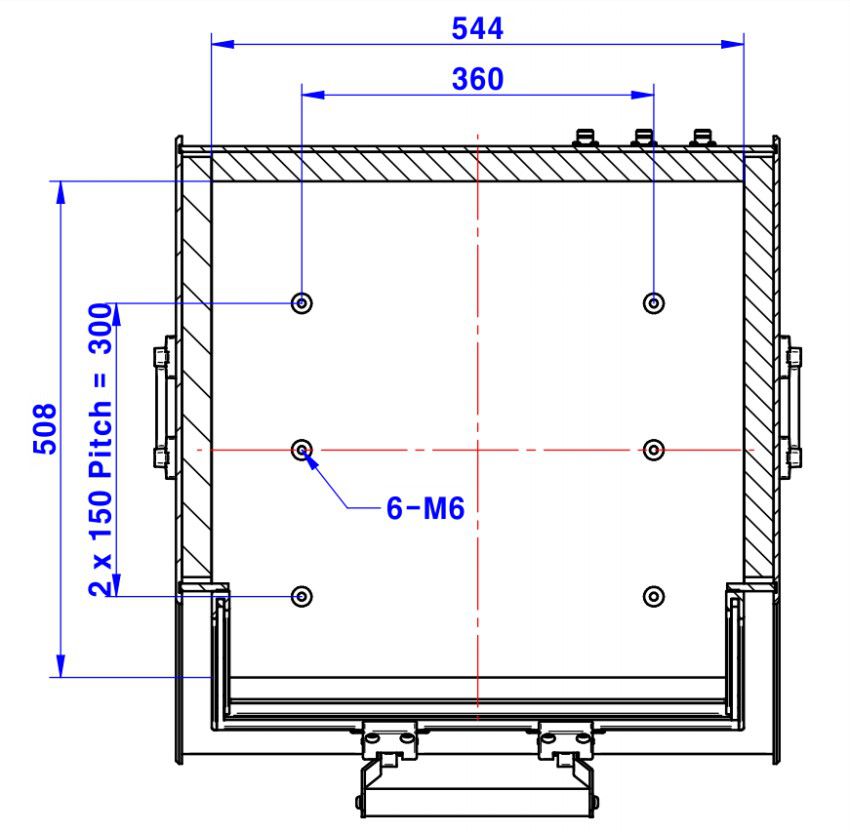

Dimensions
- Inside : 544(W) x 546(D) x 425(H) mm, 201(D) mm Top side.
- Outside : 662(W) x 703(D) x 537(H) mm, lid closed. 810(H) mm, lid open.
Weight : Approx. 38 kg
Packing (The size or weight of a package may vary on how to pack a package.)
- Size : 870(W) x 850(D) x 720(H) mm
- Weight : Approx. 54 kg
◈ Typical RF Shielding
The shielding effectiveness below is measured when the blank panel is mounted; other I/O interface panel results a different shielding effectiveness of the shield box.
Frequency / Shielding effectivness (dB)
- 100 to 2000 MHz : > 70 dB
- 2000 to 3000 MHz : > 70 dB
- 3000 to 6000 MHz : > 60 dB
◈ Absorber Reflectivity
Measured the reflected signal from the absorber with metal plate using the VNA.
Frequency / Reflectivity (dB)
- 500 to 2000 MHz : 15 dB(Typ.)
- 2000 to 6000 MHz : 20 dB(Typ.)
