Manufacturer: Testex
Model: TF163A
Origin: China
Warranty: 12 months
Power: 220V 50Hz 200W
Weight: 100 kg
Dimensions: 690 x 540 x 870 mm (L x W x H)
Pressure Range: 0 ~ 200kPa (20 m water column)
Increasing rate of water pressure: 1 ~ 60kPa/min stepless adjustable
Units: Pa, kPa, mmHg, cmH2O
Automatic clamp with holding force: 5kN
Standarad Test Head: 100cm2 (7.8cm2 optional)
Standards: AATCC 127, ISO 811/1420A, EN 20811

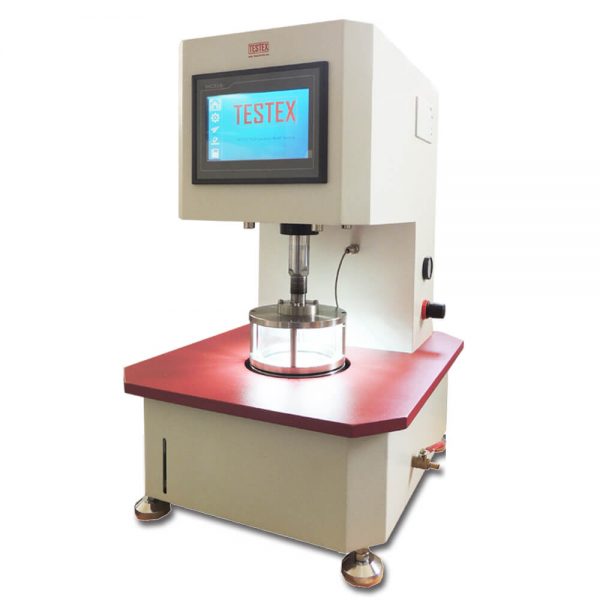

Hydrostatic Head Tester, used for determining the resistance of fabrics (canvas, coated fabrics, cover cloth, rainproof clothing fabrics, and geotextile materials) and films to water penetration under pressure while firmly clamped in the test rig of standard area.
Features:
Closed-loop controlled servo motor drives pistons to achieve the unique water pressure raising rate balance system.
The variable test method can be selected, test time and variable pressure increasing rate can be set and saved.
Wide range of pressure increasing rate and freely adjustable. Pressure increasing system is adjusted by the dynamic feedback to prevent overload.
Real-time test results are shown on the large colourful touch panel.
Test results can be made up to a report on software and print out directly.
5 test methods are included
Pressure raising mode, Constant-pressure mode, Constant pressure & fixed time mode, Extending-relaxing mode, Water penetration, and leakage mode.
Equipped with a LED lamp to observe the test process clearly.
