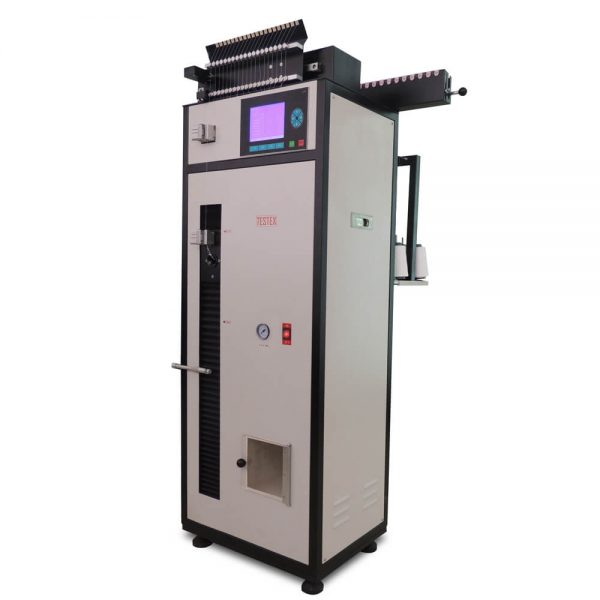

Testex TY400C Automatic Single Yarn Strength Tester
Manufacturer: Testex Model: TY400C Guarantee: 12 Month - Request a Quotation
- Request a Quotation
- Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Power: 220V 50 Hz 0.4 ~ 0.8mPa
Weight: 140 kg
Dimensions: 550 x 450 x 1600 mm (L x W x H)
Test range: 20cN ~ 6000cN
Accuracy: ≤ 1% F. S
Sampling range: 0 ~ 9 m
Pre-tension load: 0 ~ 100cN, adjustable
Elongation range: 800 mm
Gauge length: 250 mm (stretching rate 220%), 500 mm (stretching rate 160%)
Tensile speed: 50 ~ 5000 mm/min, adjustable
Standards: ASTM D2256, ISO2062, GB/T398, GB5324, GB/T14344, BS, JIS, AS, CAN/CGSB
Features
Working pattern is CRE principle.
Automatic feeding of yarn, and automatic clamping for test, fast and without damages to yarn
Fitted with Waste yarn collecting device, to make labs clean
Test up to 20 cops at the same time
