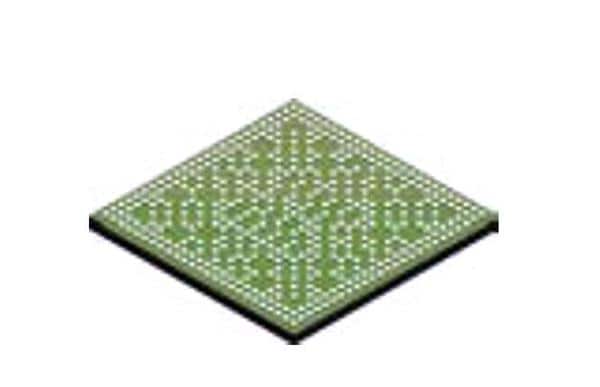

Texas Instruments AM6234ASGGHAALWR Microprocessors - MPU Internet of Things ( IoT) and gateway SoC

Core: ARM Cortex A53, ARM Cortex M4F

I/O Voltage: 1.1 V, 1.2 V, 1.8 V, 3.3 V

Memory Type: DDR4, LPDDR4

Data RAM Size: 4 GB, 8 GB

Data Bus Width: 64 bit

Interface Type: CAN, Ethernet, QSPI, SPI, UART, USB

Mounting Style: SMD/SMT

Number of I/Os: 170 I/O

Number of Cores: 5 Core

Watchdog Timers: Watchdog Timer

Instruction Type: Floating Point

Moisture Sensitive: Yes

L1 Cache Data Memory: 32 kB

Maximum Clock Frequency: 400 MHz, 1.4 GHz

Operating Supply Voltage: 750 mV, 850 mV

Number of Timers/Counters: 12 Timer

L1 Cache Instruction Memory: 32 kB

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C

L2 Cache Instruction / Data Memory: 512 kB
