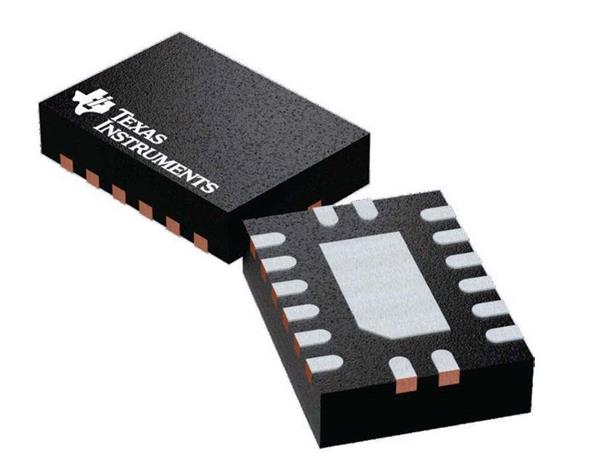

Texas Instruments SN74LV8T596BQBR Shift Registers Eight-bit voltage tr anslating shift regi

Input Type: CMOS

Logic Type: D-Type

Output Type: Open Drain

Counter Type: D-Type

Logic Family: LV

Mounting Style: SMD/SMT

Number of Bits: 8 bit

Triggering Type: Positive-Edge

Counting Sequence: Serial to Parallel

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.65 V

Number of Input Lines: 5

Number of Output Lines: 9 Line

Propagation Delay Time: 14.9 ns

Low Level Output Current: 8 mA

Operating Supply Voltage: 1.65 V to 5.5 V

High Level Output Current: - 8 mA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
