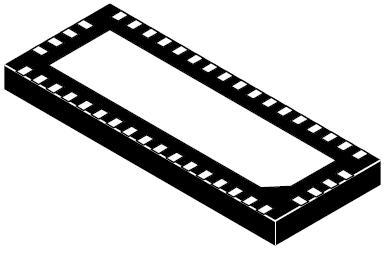

Texas Instruments TS3DV642RUATQ1 Multiplexers/Demultiplexers 6 Gbps 12-Channel di fferential 1-to-2 an TS3DV642RUARQ1

Bandwidth: 5.8 GHz

Supply Type: Single Supply

Configuration: 12 x 1:2

On Time - Max: 100 us

Mounting Style: SMD/SMT

Development Kit: TS3DV642Q1EVM-105

Moisture Sensitive: Yes

Number of Channels: 12 Channel

Off Isolation - Typ: - 16 dB, - 20 dB, - 82 dB

On Resistance - Max: 9.5 Ohms

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 3 V

Propagation Delay Time: 66 ps

Operating Supply Voltage: 3.3 V

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
